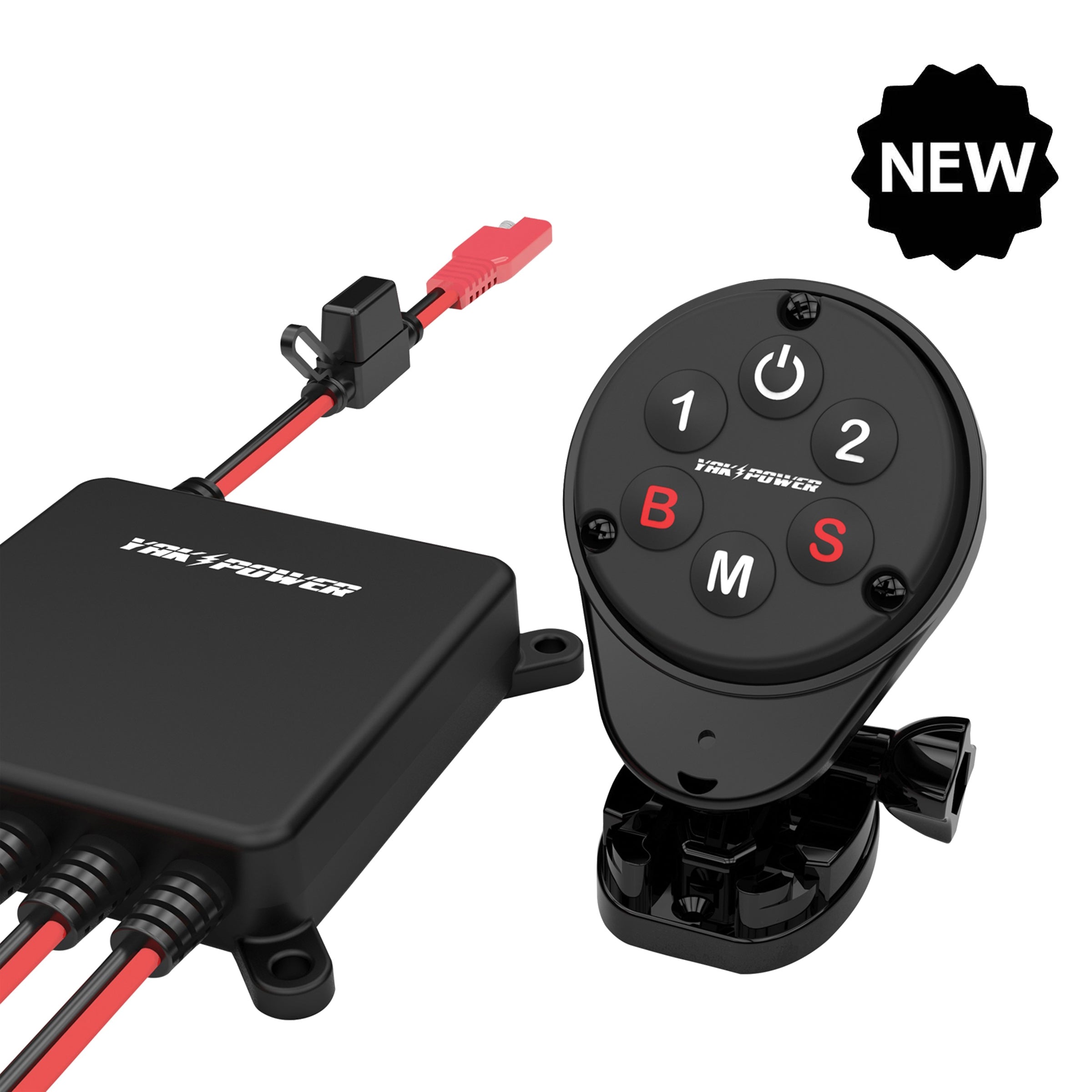

YP-RP5WR Five Circuit Wireless Digital Switching System
- Technical Notice: If power is not properly connected to the relay pack or if the polarity of the battery connector is wrong, the relay pack will not be powered up and will not be able to communicate with the keypad. This will result in the keypad not fully turning on and the keypad numbers not illuminating. If you are having issues with your wireless switcher turning on, please check the polarity of the main power connector to the relay pack to insure that the battery connector into which you are plugging has the female side on the positive (red) wire and the male side pin connector on the negative (black) wire. Also, please make certain that BOTH clear battery insulator tabs have been removed from the keypad battery compartment.
- Integrated RF/Bluetooth Control
- Last Mode Memory: The system remembers which circuits were ON when Master Power is used to turn the entire system OFF. Then when the system is turned back ON using the Master Power button, all of the “Last Mode” circuits will also be turned back on.
- Wirelessly Compatible with all Lowrance HDS Live, HDS Pro, and Elite FS series graphs (requires new software release from Lowrance expected in Q1 2025)

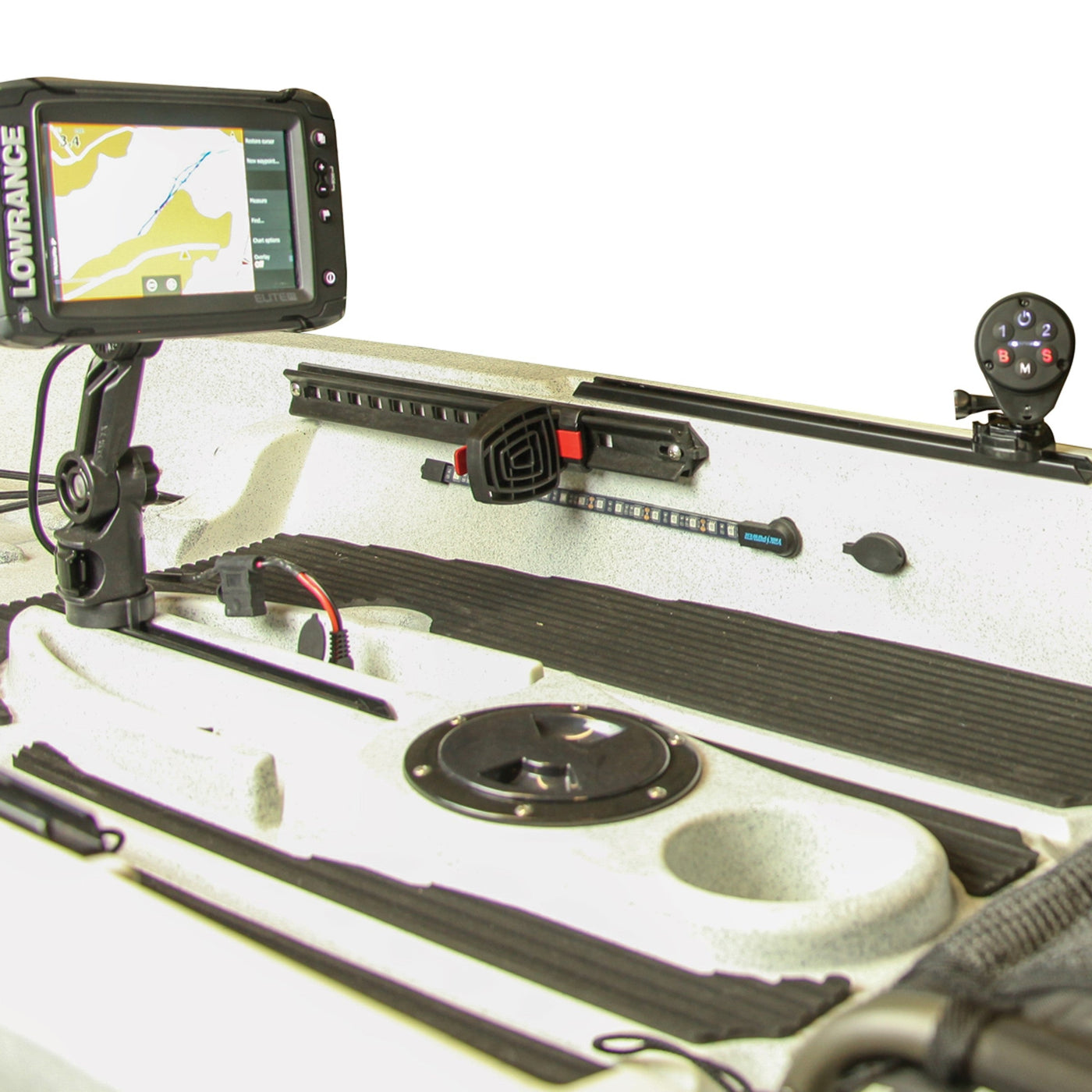

- Keypad action mount with t-nut for rail mounting.

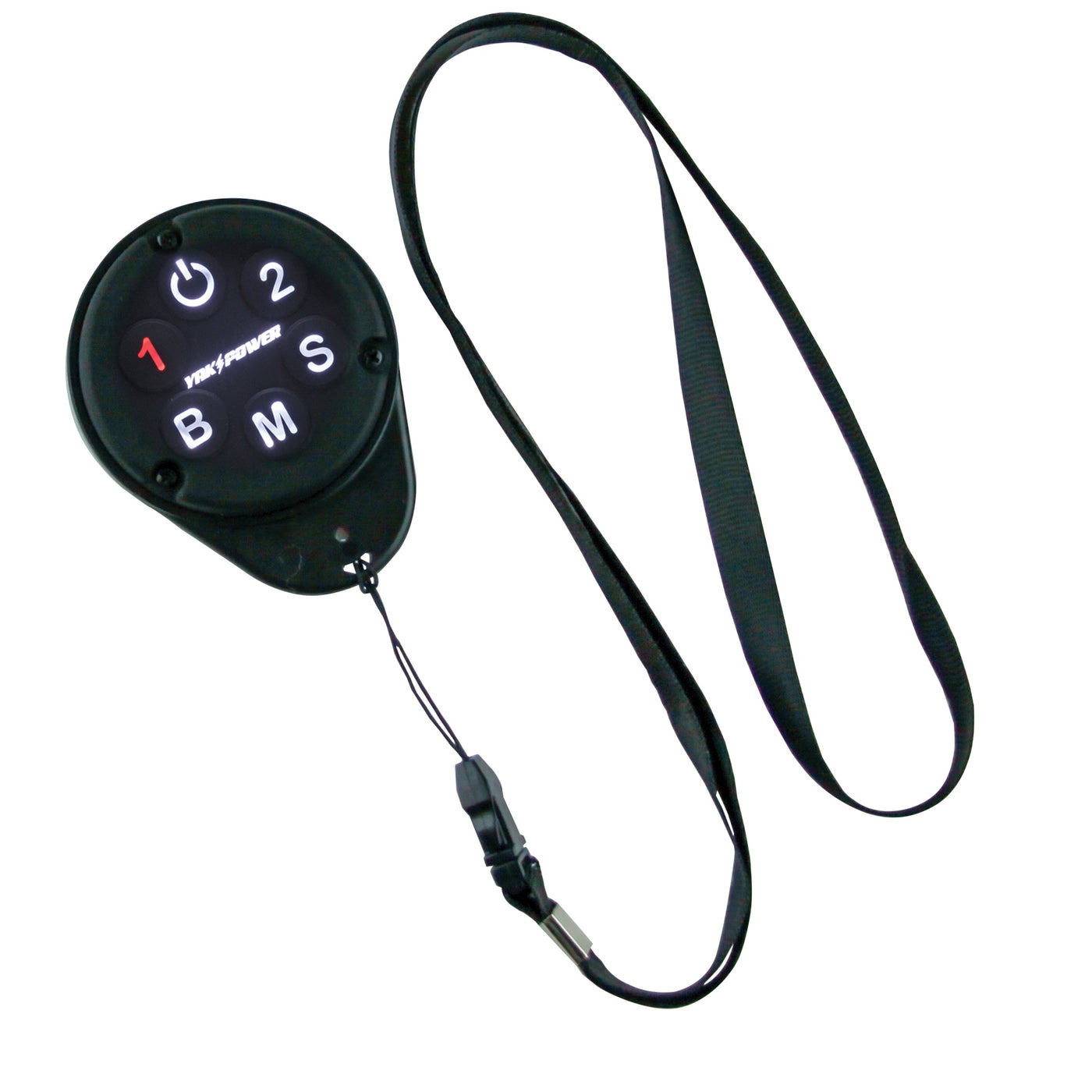

- Remote Lanyard and optional surface mount included.
- Yak Power plug-and-play SAE termination.

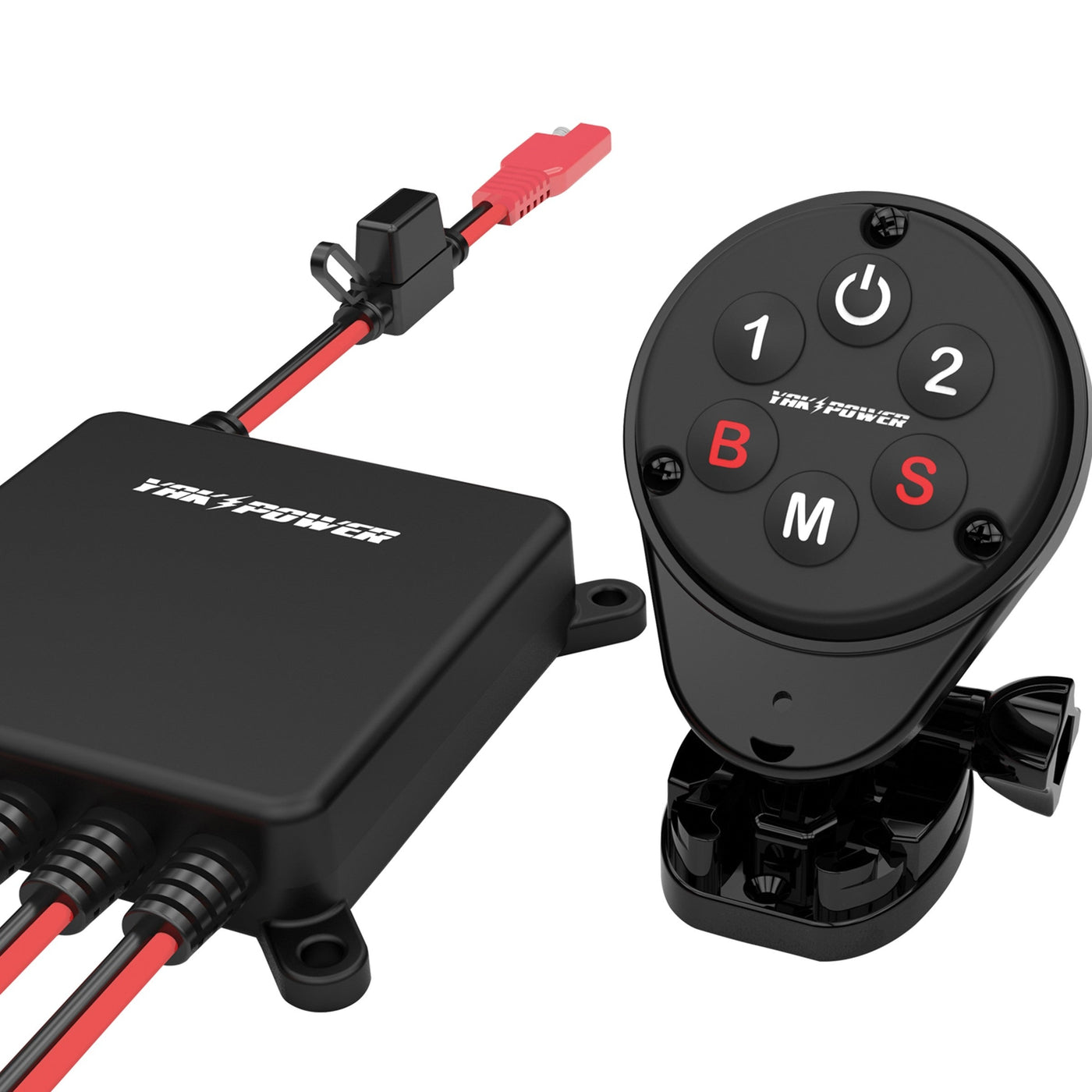

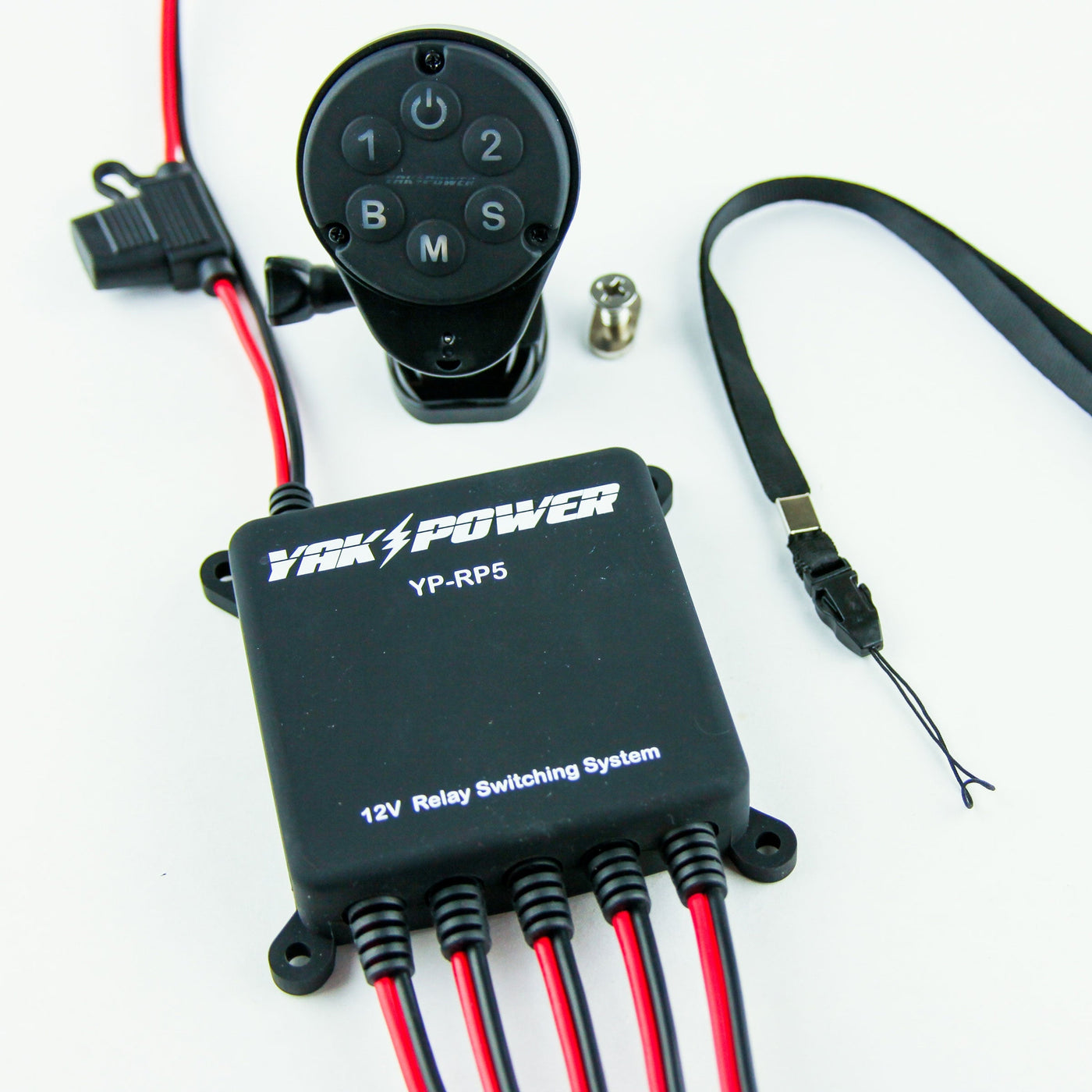

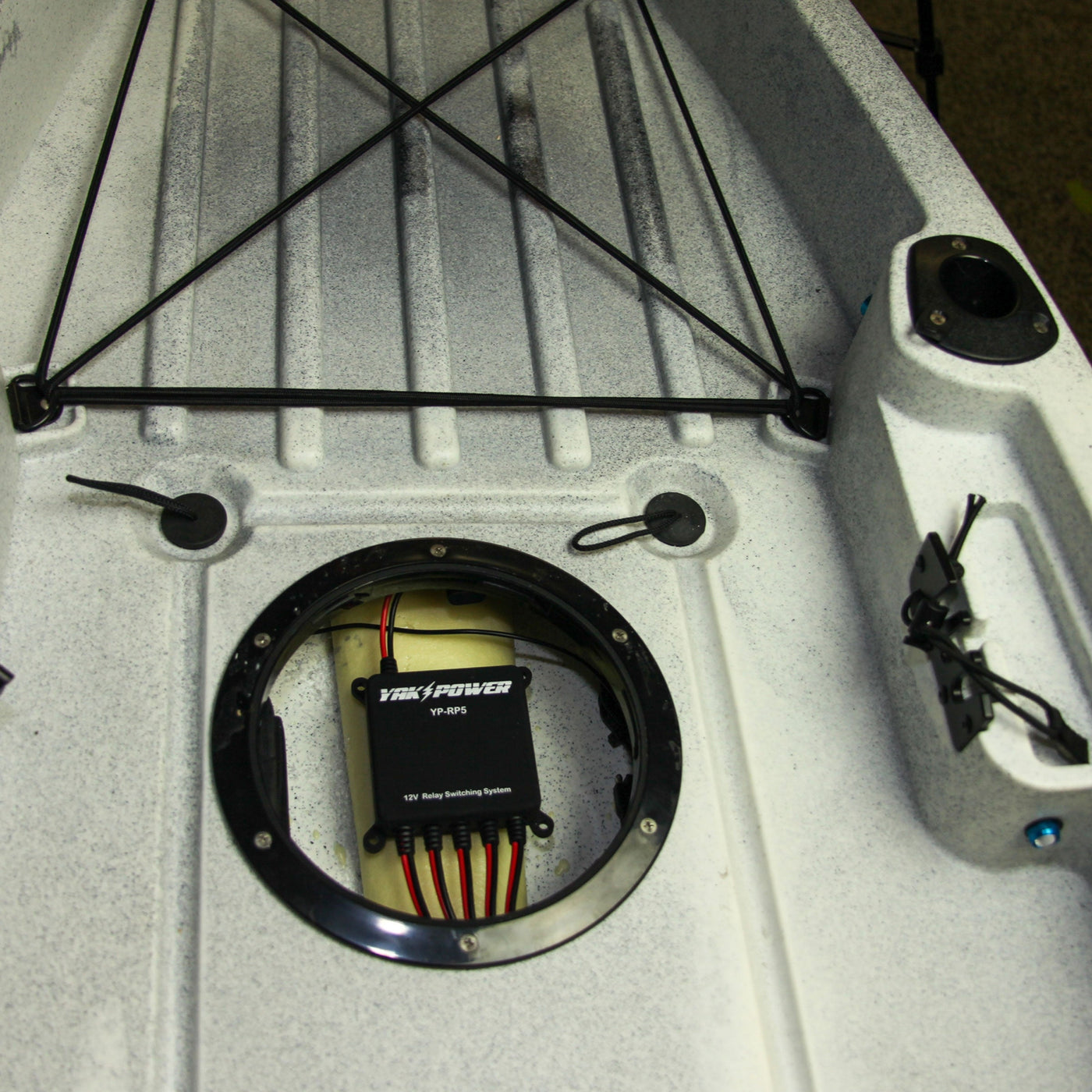

- Wirelessly controlled digital switching system with mounting feet and inline fused power wire.
- Designed for 15 amps total current draw.

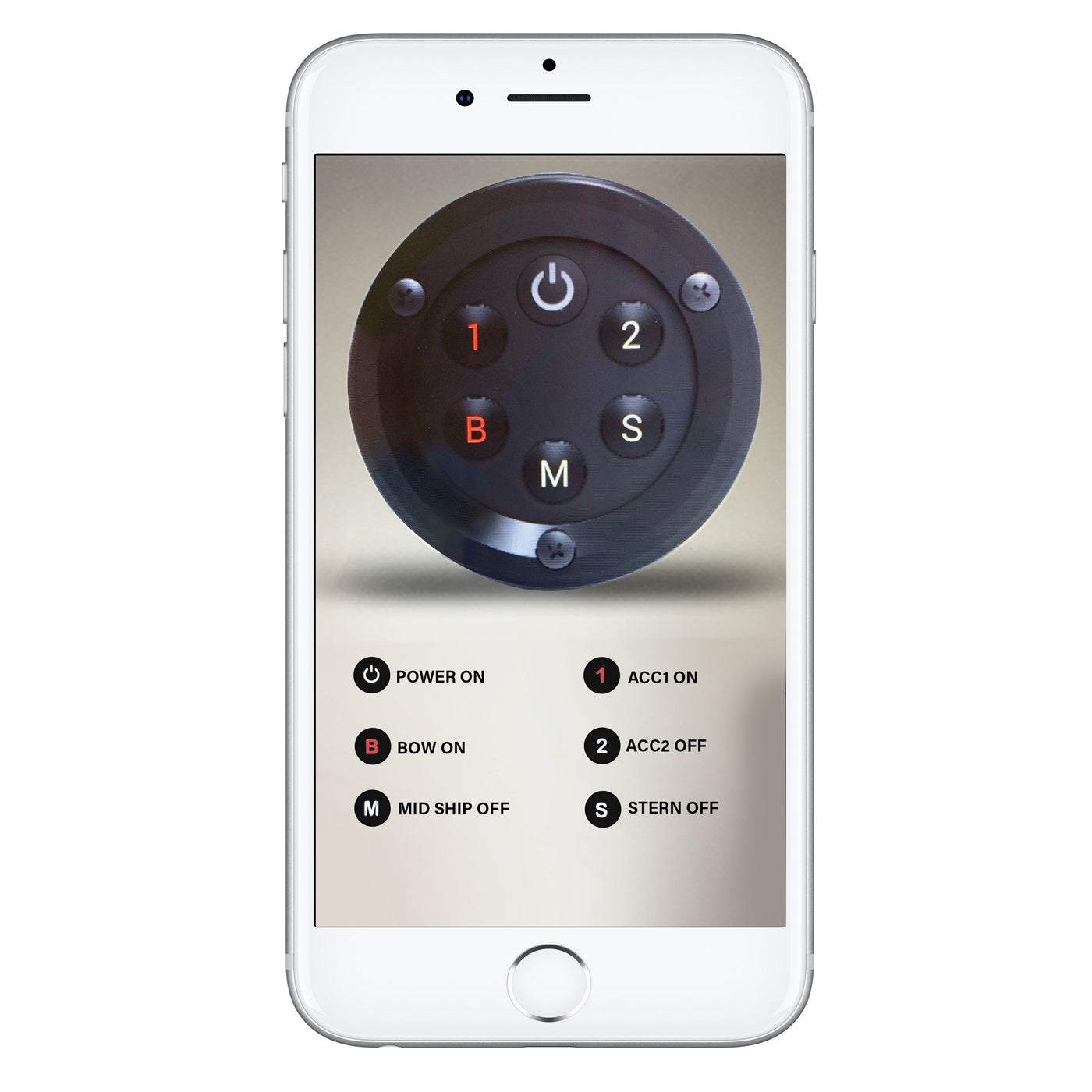

- Mobile app control.
- Optional keypad hardwire kit (sold separately)
- Fully potted internally for maximum durability.

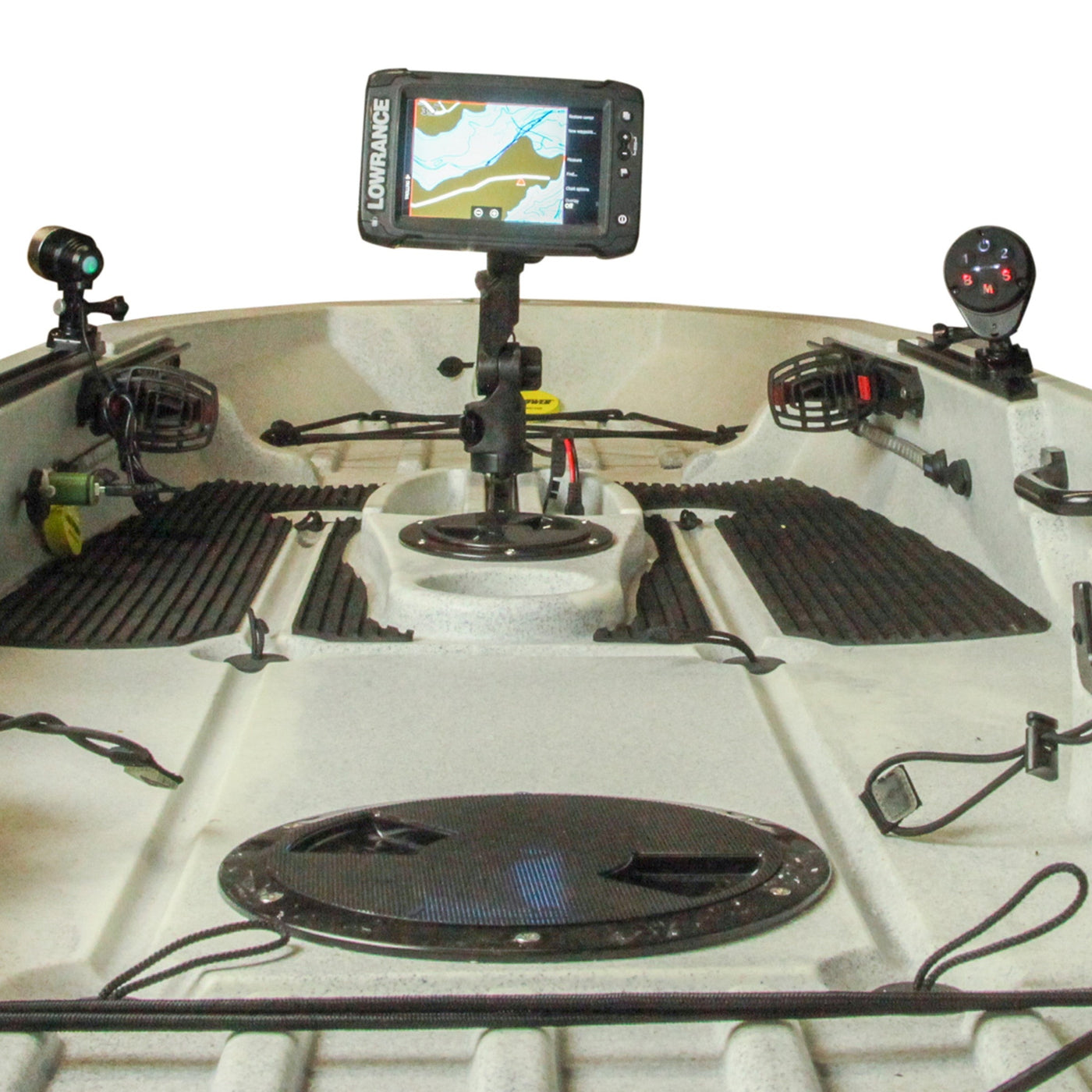

Yak Power introduces totally wireless rigging and control of your kayak! The NEW YP-RP5WR features five switched outlets, battery powered keypad with quick disconnect base and a t-nut rail track mounting option, integrated Bluetooth with mobile app control, last memory mode, inline 15A fuse, and Yak Power plug-and-play connectivity. Yak Power lets you spend less time rigging and more time fishing.
This completely wireless Power Panel switching system is designed to make it quick and easy for you to connect your fish finder, bait well pump, LED lighting, phone charger, and any other 12v accessory you need out on the water. All accessories are connected and controlled independently using individual buttons. Each button turns RED when it is activated. And, the Master Power switch allows you to completely power up-down the entire system to minimize your power consumption while out on the water.
Warning: If connecting a trolling motor, large LED light bar, agricultural sprayer or other high current electronic 12V device you MUST use a secondary YP-LDR50 Heavy Duty relay and the correct size gauge of wire on the load side of the relay between the relay and the device you are connecting. You must also use the same size gauge of wire on the battery connection to the relay to insure proper function and protection of your device. Please consult the specifications for the device you are connecting for proper wire sizing BEFORE installation.
Note: Make sure the plug-and-play connectors are completely pushed together when connecting the system together. Yak-Power uses our own custom tooled, high tolerance, very snug fitting connectors with larger gauge, real copper wire to ensure a quality, weatherproof and reliable connection.
All our plug-and-play accessories are specifically designed to work together while maintaining the correct battery polarity throughout the entire Yak-Power system. Using other aftermarket connectors or splicing other connectors into the YP system may cause damage to the system or the accessories connected to the system and may void your warranty.
Caution: Make sure to pay attention to the actual wire colors of all our accessory cables to ensure that the red (+) wire is always connecting to the red (+) wire on the connector into which it is being plugged.
Support Materials
|
Specifications
- Product Weight 1.15
- H x W x L 6.50 x 3.00 x 6.50
- MPN YP-RP5WR
