LS MAX Pole Mount

Summit LS Max Pole Mount

Strength, elegance, and practicality converge in the LS Max Pole Mount! Designed to be mounted on a 3" track (Traxtech, Berts, Cisco, Tite-lok), Kayak T-Track, or directly to a deck mounting plate (LS Max Base Plate), this mount offers versatility for various boat configurations.

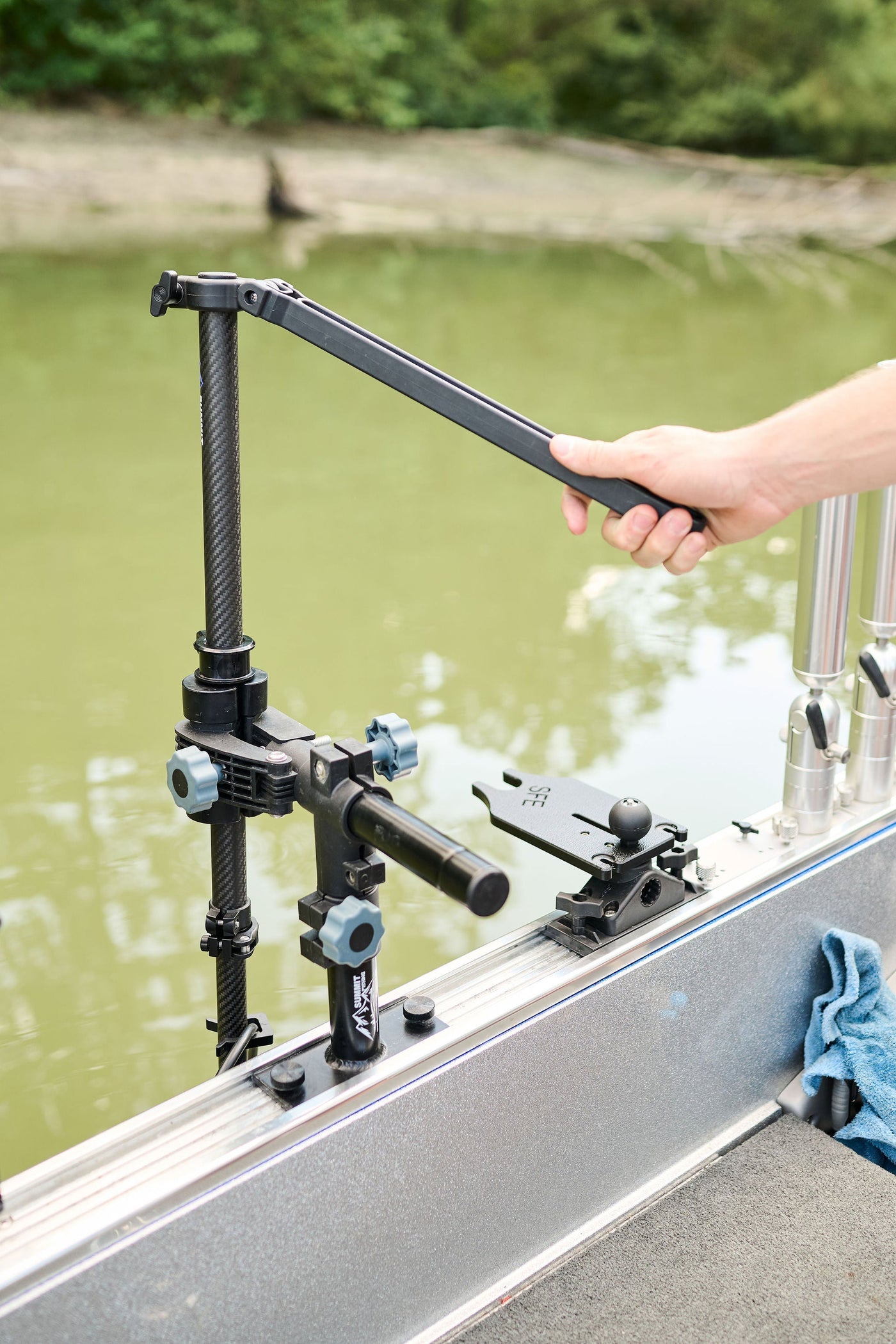

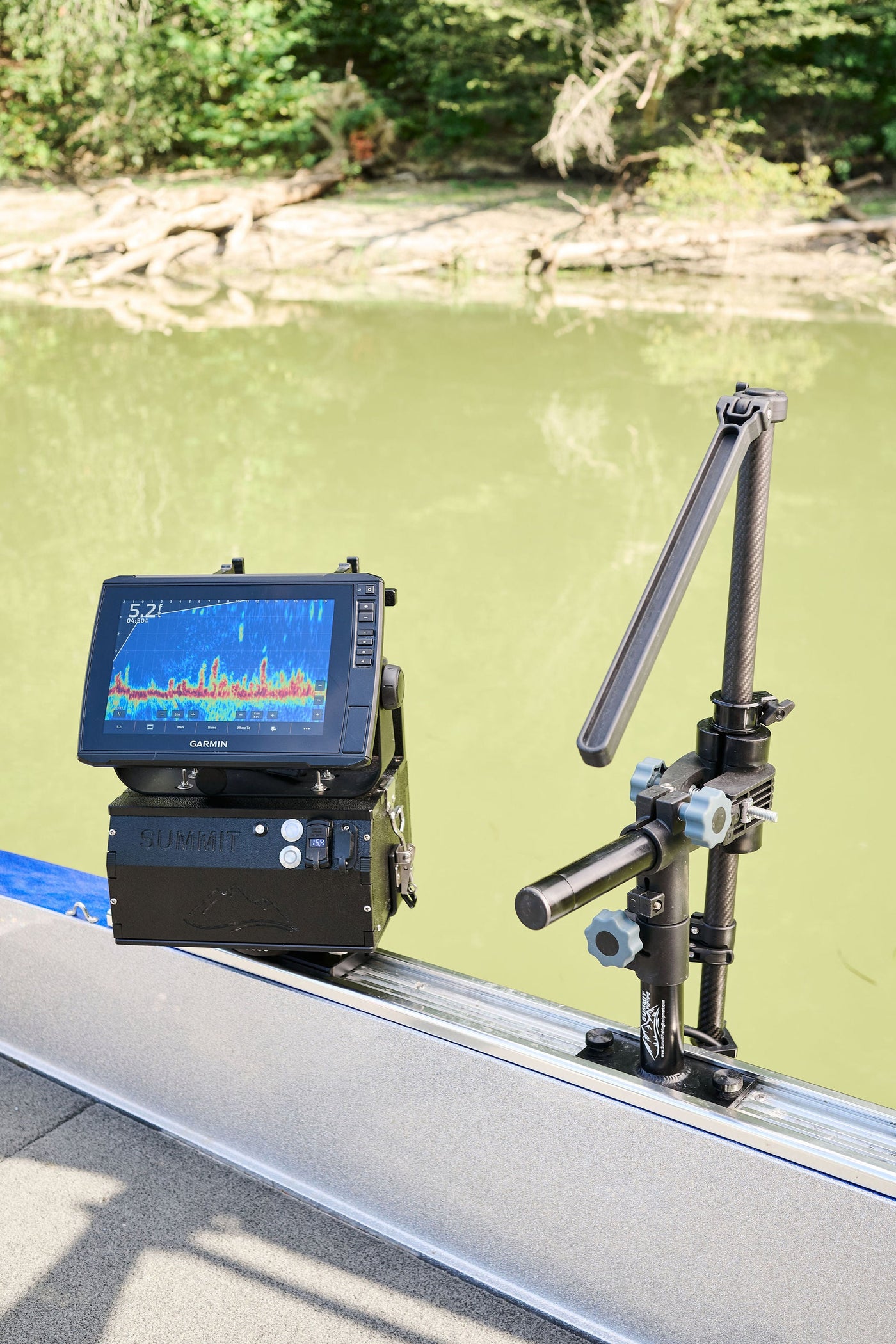

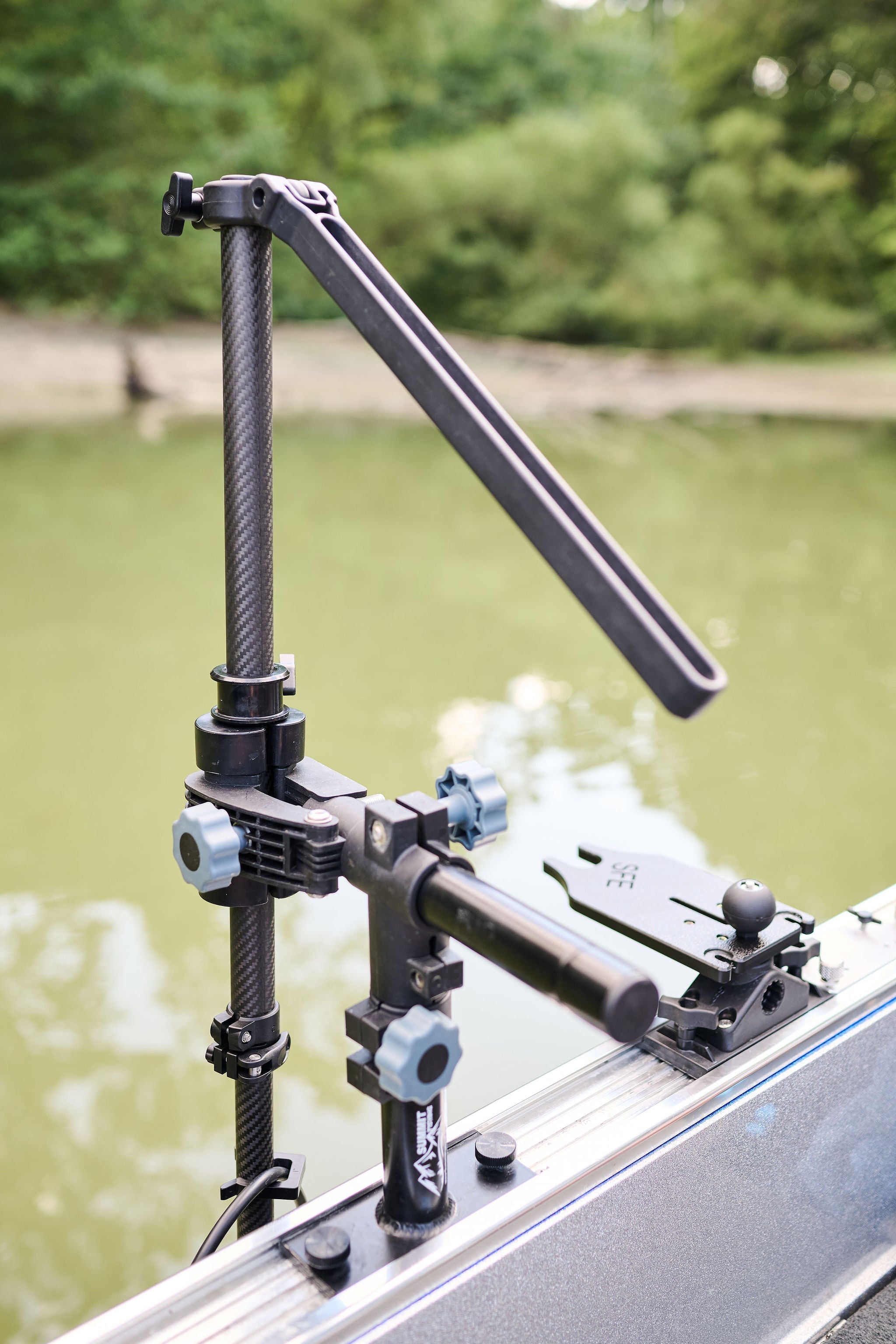

The LS Max Pole Mount features 360-degree rotation of both the vertical and horizontal tubes, allowing for easy and convenient stowing. Its smooth rotation with adjustable tension ensures your transducer remains pointed precisely where you want it at all times, even when trolling.

Available in two adjustable height models, 6-12" and 12-24", both models feature a sliding adjustable arm with up to 9" of reach to accommodate any boat's needs. Designed to fit any of our Summit GEN 2 SILVER poles or any other pole with a 1 1/8 (1.125) diameter, the mount includes 2 anodized aluminum pole clamps for height adjustment.

For permanent mounting, 8mm thumb screws are used for the base, allowing the use of standard 1/4-20" hardware to fit through the holes.

Kayak Mounting: Use standard 1/4-20 T-bolts through the threaded holes for the thumb screws, with a female thumb screw nut on the top side.

Removable Mounting Without Track: The Summit LS Max Base Plate provides a mounting plate with thumbscrews (sold separately).

Please use the drop-down menu to choose the length variation. "6-12"" means the mount will be as short as 6" and as tall as 12". "12-24"" means the pole mount will be as short as 12" and as tall as 24" from the bottom of the base plate to the bottom of the horizontal tube.

Note:

• Only one black anodized pole collar is provided. It gets installed onto the pole and rests on top of the clamp to allow for pole rotation.
• Pole sold separately (ONLY WORKS WITH CARBON FIBER POLE, GEN 2 SILVER POLE OR 1.125" POLES) Link to poles
• Watch Assembly Video Here
• Track sold separately
