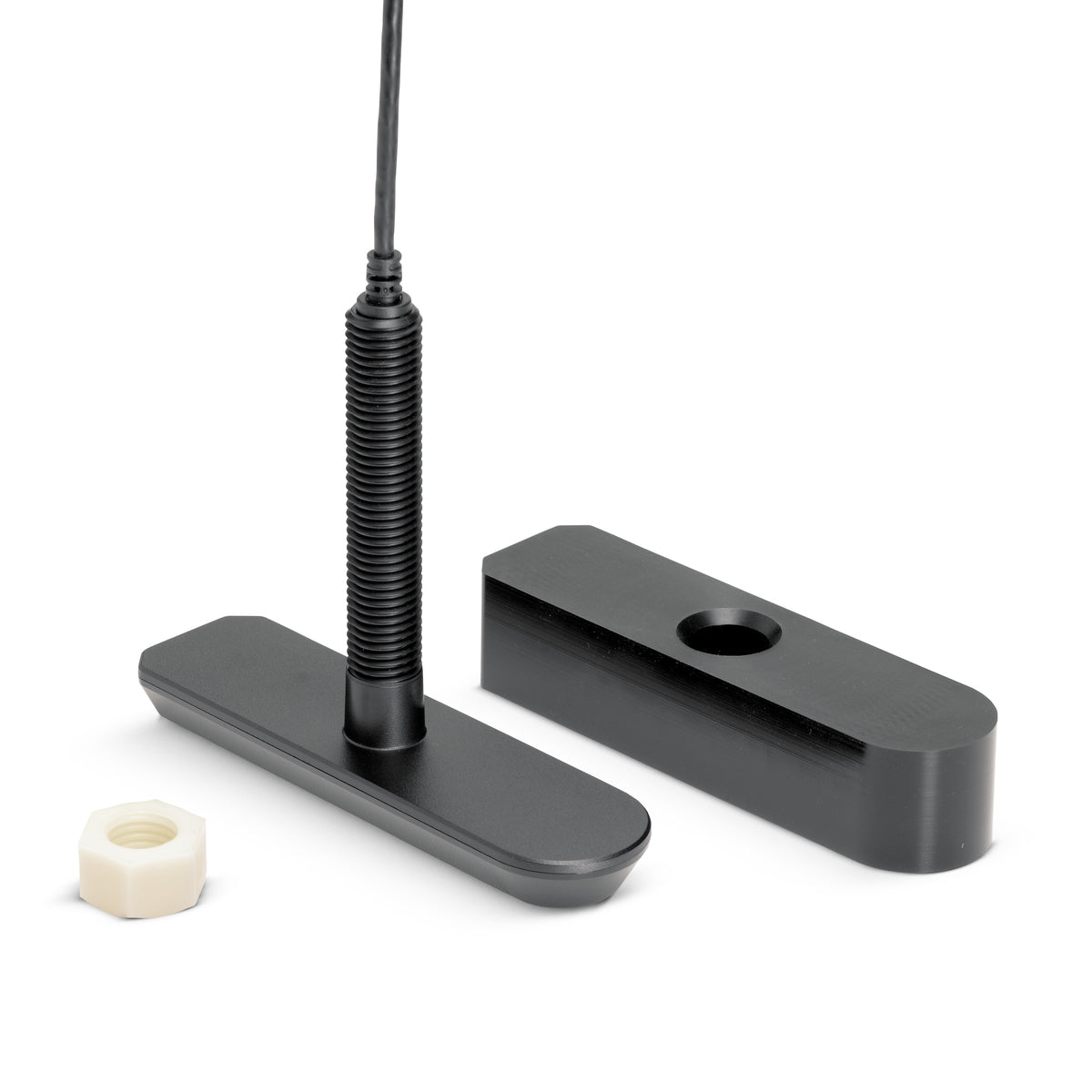

Humminbird XPTH-9-HW-MSI-T Thru-Hull Transducer W/Temp

Humminbird

Humminbird XPTH-9-HW-MSI-T Thru-Hull Transducer W/Temp

$529.99

Humminbird XPTH-9-HW-MSI-T Thru-Hull Transducer W/Temp

Humminbird XPTH-9-HW-MSI-T

Model: 710284-1

  • This accessory is compatible with the following Humminbird products: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G3N.

  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

  • Dual Spectrum CHRIP Max Depth: 1200ft (365m)

  • MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (m)

  • MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m)

MEGA Side Imaging+ Plastic Thru-Hull Transducer supports MEGA Imaging/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Specifications
Mount TypeThru-HullSonar TypeMEGA Imaging, Dual SpectrumCurrent ModelsHELIX 8, HELIX 9, HELIX 10, HELIX 12
