Garmin GT34UHD-TM Transducer Transom Mount 12-Pin

Garmin GT34UHD-TM Transducer Transom Mount 12-Pin

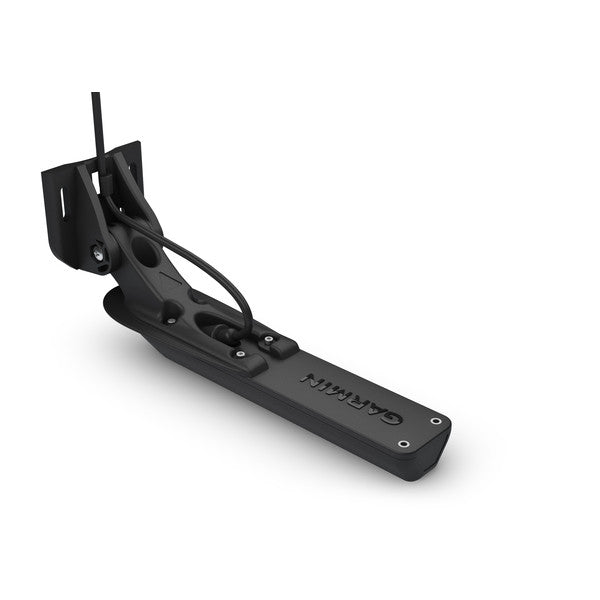

Garmin GT34-UHD-TM Ultra High-Definition Transom Mount Transducer

Model: 010-012776-00

Add stunningly clear Ultra High-Definition ClearVü and Ultra High-Definition SideVü scanning sonar images to your compatible chartplotter via the GCV™ 20 sonar module. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications
FrequencyUltra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHzPower500 wattsBeamwidthUltra High-Defintion ClearVü: 0.74° x 46°
Ultra High-Defintion SideVü: 0.44° x 55°Maximum depthUltra High-Defintion ClearVü: 200 ft. down
Ultra High-Defintion SideVü: 125 ft. sides, 250 ft. totalFeaturesDepth and TemperatureNumber of pins12Cable length20 ftSupported deadrise/Transom angles0°-70° degree transom
