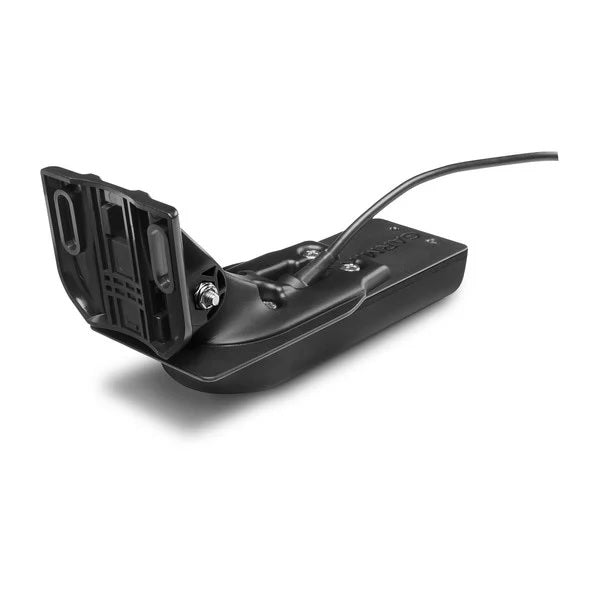

Garmin GT22HW-TM Transom Mount Transducer

Garmin GT22HW-TM Transom Mount Transducer

Garmin GT22HW-TM Plastic, Transom or Trolling Motor Mount Transducer, High Wide CHIRP (150-240 kHz, 250 W)/CHIRP DownVü (455/800 kHz, 500 W) (8-pin)

Model: 010-12403-00
UPC: 753759148584

GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.

The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü (455/800 kHz) element has a power rating of 500 W.

GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.

Specifications
FrequencyTraditional: CHIRP 150-240 kHz
DownVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz Beam Width (°) LF/HF (-3dB):Traditional: 24/16
DownVü: 2.0x50@455 and 1.0x30@800 maximum depthTraditional: 800 ft
DownVü: 500 ft Transmit powerTraditional: 250 W
DownVü: 500 W Connector8 pin Cable Length20 feet
What's in the Box:

• GT22HW-TM transducer
• Transom mount
• Trolling motor mount
• Mounting hardware
• Documentation
