Garmin GPSMAP8610xsv Ice House Livescope Plus System GN+ US Inland

Garmin GPSMAP8610xsv Ice House Livescope Plus System GN+ US Inland

Model: 020-00332-00

• 10" FULL HD IPS TOUCHSCREEN DISPLAY


• SHARE TO YOUR TV OR EXTERNAL DISPLAY VIA HDMI OUTPUT (HDMI CABLE NOT INCLUDED)


• LIVESCOPE FORWARD AND LIVESCOPE DOWN MODES


• PRELOADED WITH GARMIN NAVIONICS+ MAPPING OF 25,000+ INLAND AND COASTAL LAKES

Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System and everything else you’ll need to catch more fish.

This chartplotter features a 10" full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.

Get a GLS 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.

With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.

Create custom pages that combine sonar and maps on your display.

See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.

Specifications

General

TOUCHSCREEN
Yes

INPUT
Touchscreen

DISPLAY SIZE
8.6" x 5.4"; 10.1" diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal)

DISPLAY RESOLUTION
1920 x 1200 pixels

DISPLAY TYPE
WUXGA, IPS

WEIGHT
15.4 lbs (7.0 kg)

WATERPROOF
IPX7

Maps & Memory

ACCEPTS DATA CARDS
2 microSD cards

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Ice Fishing Details

BAG SIZE
None

INCLUDED TRANSDUCER
LiveScope Plus System with LVS34-IF

TRANSDUCER HOLDING FEATURE
Pole mount

Sensors

HAS BUILT-IN RECEIVER
Yes

RECEIVER
10 Hz

NMEA 2000 COMPATIBLE
Yes

GPS
Yes

GLONASS
Yes

GALILEO
Yes

SUPPORTS WAAS
Yes

Sonar Features & Specifications

DISPLAYS SONAR
Yes

POWER OUTPUT
1 kW

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM)
built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVU
built-in 260/455/800/1000/1200 kHz

SIDEVU
built-in 260/455/800/1000/1200 kHz

PANOPTIX SONAR
Yes

LIVESCOPE
Yes

Connections

NMEA 2000® PORTS
1

VIDEO INPUT PORTS
1 (BNC composite); 1 HDMI (HDCP compliant)

VIDEO OUTPUT PORTS
1 HDMI

GARMIN MARINE NETWORK PORTS
2

8-PIN TRANSDUCER PORTS
Yes

12-PIN TRANSDUCER PORTS
Yes

BLUETOOTH® PAIRING
Yes

ANT+ (CONNECTIVITY)
Yes

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Input Voltage
10 to 32 Vdc

Dimensions
10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)

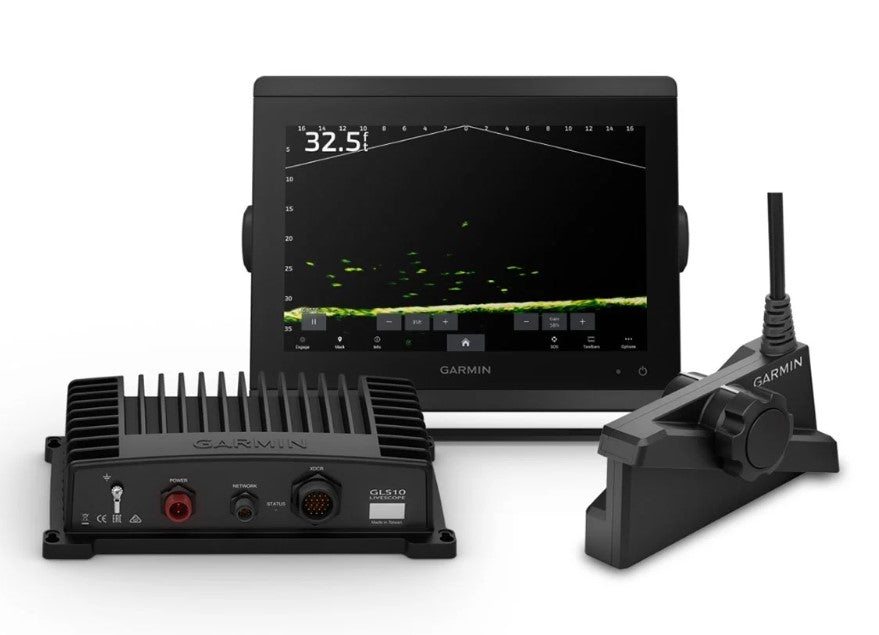

What's in the Box:

• GPSMAP 8610xsv with preloaded Garmin Navionics+ Coastal Charts and Inland Mapping for U.S.


• LiveScope Plus LVS34-IF transducer


• GLS 10 black box sonar module with power and network cables

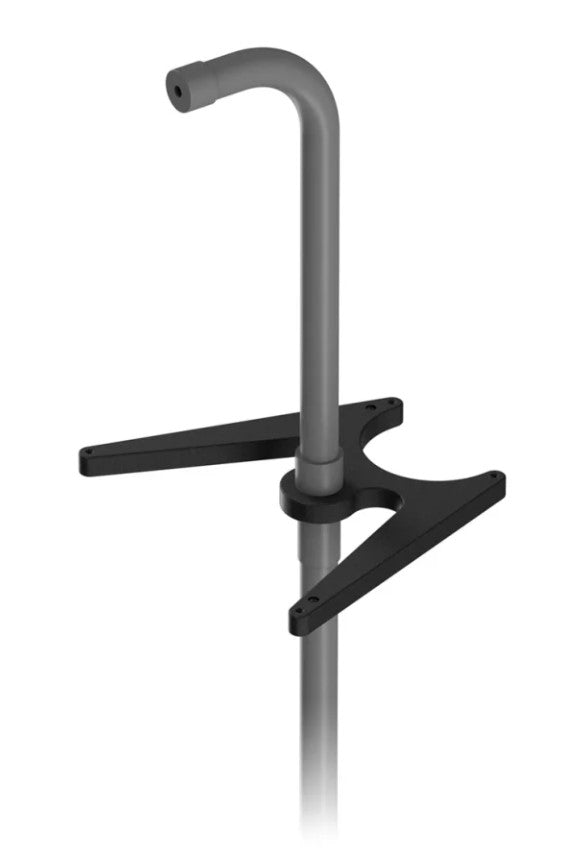

• Ice fishing pole mount


• Documentation
