Garmin Force Pro Trolling Motor 57in Shaft Built-in GT56UHD-TR

Garmin Force Pro Trolling Motor 57in Shaft Built-in GT56UHD-TR

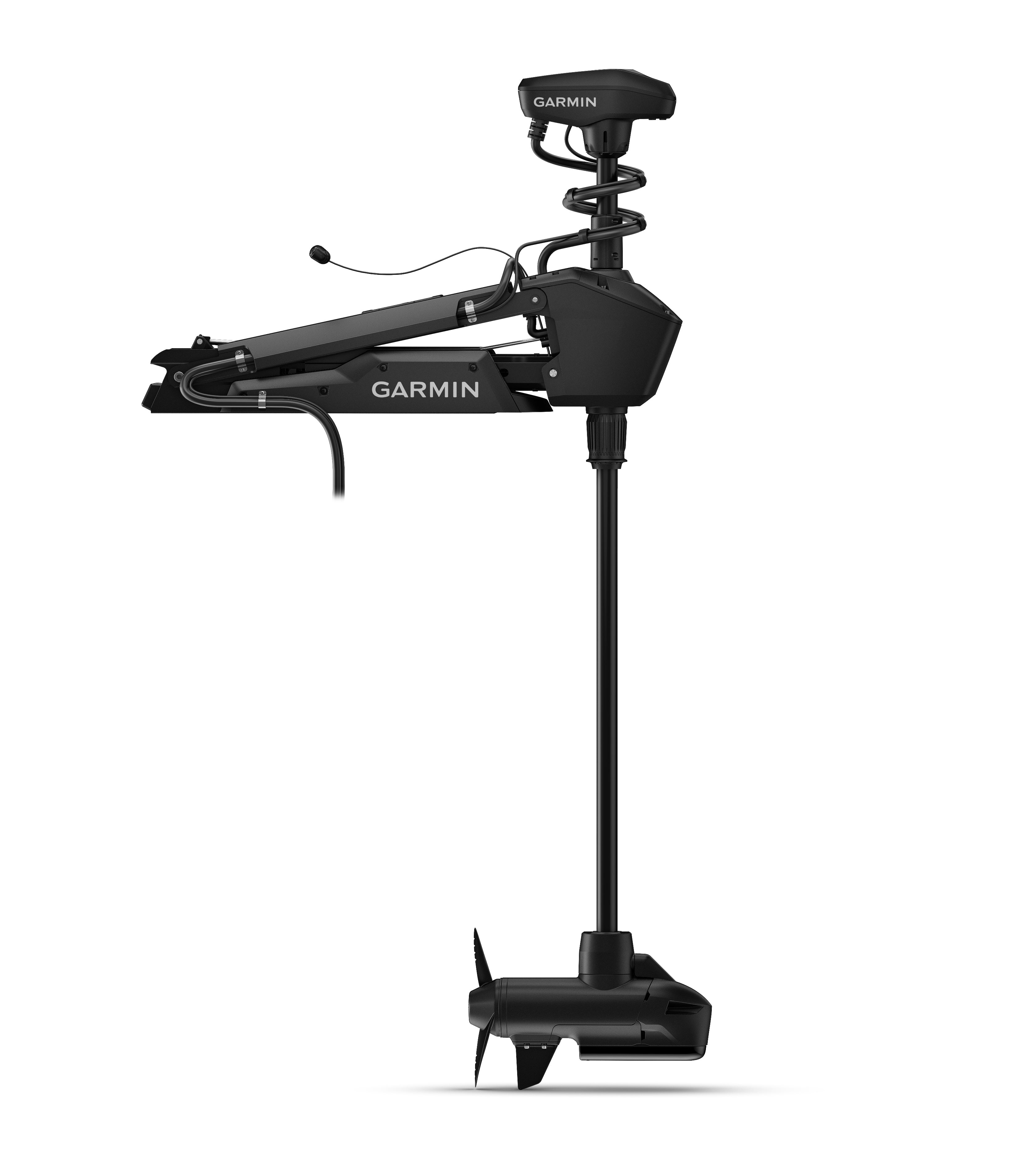

Garmin Force® Pro Trolling Motor Black 57in Trolling Motor with Built-In GT56UHD-TR Transducer

Model: 010-03011-10

• Trolling motor with legendary power and performance


• Multiband GPS provides superior positioning accuracy when in anchor lock, heading hold or while following a route


• Includes two props: high efficiency and weedless


• Wireless integration with your Garmin chartplotters allows you to create routes and control steering, thrust level, anchor lock positioning and more


• Easy installation with the scissor-style mount, which includes a durable pull cable and dual gas springs for easy deployment and stowing


• Get brilliant UHD scanning sonar with the included GT56UHD transducer


• Clear sonar returns with extremely low levels of noise


• Don’t spook the fish; motor is extremely quiet above and below the water


• Auto forward feature pre-aligns the motor so it’s forward facing upon deployment


• Lighted indicator on the shaft cap lets you see motor direction in low light


• Manual reverse prop spin lets you easily blow off weeds when necessary


• Saltwater durable with advanced corrosion protection

Fish with force with Force® Pro, the trolling motor with legendary power and performance. With its scissor-style mount and choice of 50" or 57" shaft lengths, it’s designed specifically for bass boats. See everything around your boat with brilliant high-definition scanning sonar with the included all-in-one GT56UHD transducer. And once you’ve found the spot, stay put with our most precise anchor lock technology, now featuring reverse prop spin and calm-water cable unwrap to reduce motor activity. Make speed and steering adjustments wirelessly from anywhere on the boat with the included foot pedal or included remote with gesture control. You can also use your integrated chartplotter to draw a route, and the trolling motor will automatically navigate while you fish. The lighted indicator on the trolling motor shaft cap means you can fish in low light and always know what direction you’re headed.

Specifications

General

Color
Black

For use in
freshwater, brackish water and saltwater

Mount style
scissor-style mount

Max thrust
100 lbs per ISO 13342 using high efficiency propeller at 36 / 80 lbs per ISO 13342 using high efficiency propeller at 24 V

Voltage
24 V or 36 V

Electric steering
Yes

Lift-assist
dual gas springs

Built-in heading sensor
Yes

Built-in GPS
Yes (dual frequency GPS)

Warranty
3-year, limited lifetime on shaft

Water rating
IPX7

Mounting location
Bow

Wireless remote
Yes (included)

Foot pedal compatible
Yes (included)

Battery indicator
Yes

Variable speed control
Yes (20 steps)

Lighted direction indicator
Yes

Deck stabilizer
Yes (included)

Quatix remote control supported
Yes

Manual reverse control
Yes

Sonar Features

Frequencies supported
Traditional: High-wide CHIRP (150-240 kHz) ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz

Transmit power
Traditional: 350 W ClearVu/SideVu: 500 W

Maximum depth
CHIRP sonar: 800' freshwater ClearVu: 400' SideVu: 500'

Depth/speed/temperature
depth and temperature

Number of pins
12-pin (orange connector)

Autopilot Features

Route following
Yes

Anchor lock
Yes

Smart Anchor Lock features
Yes

Anchor lock jog
Yes

Heading hold
Yes

Cruise control
Yes

Gesture features
Yes (manual+, heading hold+, jog+)

Foot Pedal Features

Dimensions
12" L x 9" W x 4 1/2" H

Wireless communication
Yes

Power installation
12 V/24 V/36 V wired or battery powered (2 AA)

AA battery life
1 full season

Water rating
IPX7

Adjustable pedal resistance
Yes

Remote Features

Display size
1.2" (30.2 mm) diameter

Display resolution
240 x 240 pixels

Display type
color, sunlight-visible, transflective memory-in-pixel (MIP)

Chartplotter user-programmable keys
Yes

Autopilot feature control
Yes

Water rating
IPX7

Battery life
Typical use with backlight at low, 43 weeks

Floats
Yes

What's in the Box:

• Force® Pro Trolling Motor


• High efficiency propeller


• Weedless propeller


• Foot pedal


• Remote


• Stabilizer


• Assembly and mounting hardware


• Documentation
