Garmin ECHOMAP UHD2 53cv Ice Bundle With Dualbeam-IF GN+ US Inland

Garmin ECHOMAP UHD2 53cv Ice Bundle With Dualbeam-IF GN+ US Inland

Model: 010-02590-35

• BRIGHT 5" SUNLIGHT-READABLE DISPLAY


• INCLUDED DUAL BEAM-IF TRANSDUCER


• BUILT-IN FLASHER


• GARMIN NAVIONICS+ MAPS WITH 23,000+ LAKES


• RUGGED, PORTABLE CARRYING CASE

CLEAR, HIGH-CONTRAST VIEWS ANYWHERE YOU FISH
Designed for the passionate angler, the 5-inch ECHOMAP UHD2 Ice Fishing Bundle provides detailed maps and sonar so you can transform your fishing experience.

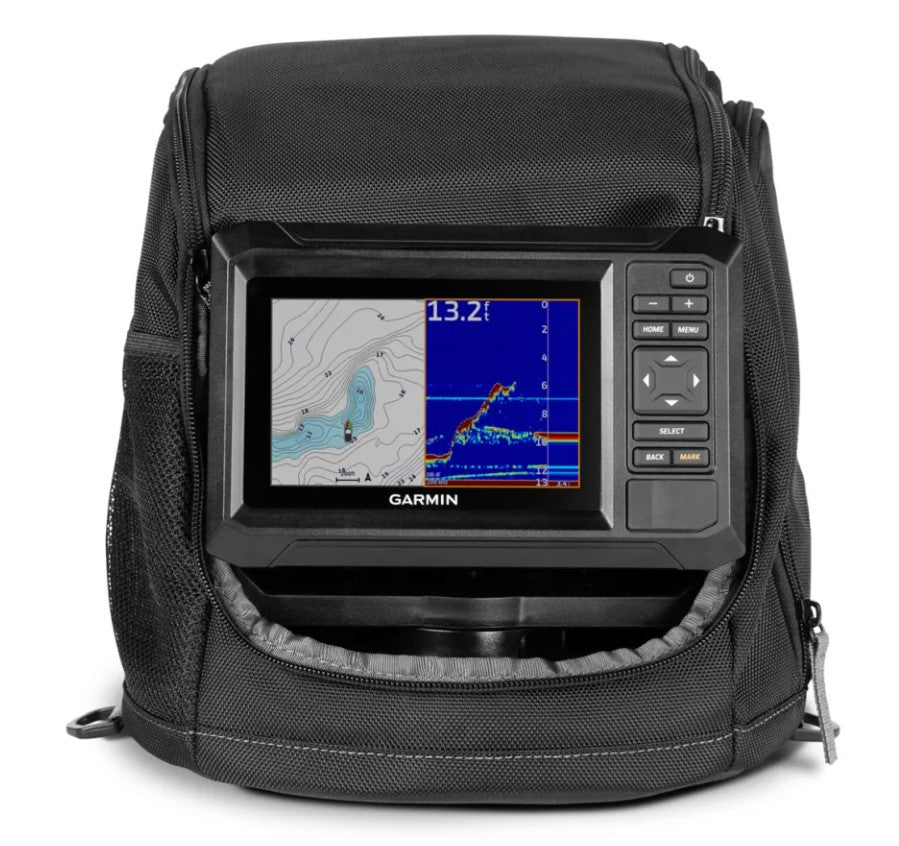

This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface.

This portable bundle includes the 5-inch ECHOMAP UHD2 chartplotter with a glove-friendly keyed interface.

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

You can create custom pages that combine sonar, flasher and map on your display.

The 5-inch ECHOMAP UHD2 also supports ClearVü scanning sonar for open water. Get nearly photographic images of what’s below the surface (transducer sold separately).

Where you take your bundle is up to you. But the rugged, glove-friendly portable carrying case lets you easily transport it from hole to hole and season to season.

Specifications

General

INPUT
Keyed

DISPLAY SIZE
4.3" x 2.6" (10.9 x 6.6 cm)

DISPLAY RESOLUTION
800 x 480 pixels

DISPLAY TYPE
WVGA, IPS

WEIGHT
9.5 lbs (4.3 kg)

WATERPROOF
IPX7

Maps & Memory

ACCEPTS DATA CARDS
1 microSD card; 32 GB maximum size

WAYPOINTS
5000

TRACK POINTS
50,000

TRACKS
50 saved tracks

NAVIGATION ROUTES
100

Ice Fishing Details

BATTERY TYPE, SIZE
SLA, 7Ah

BAG SIZE
Small

INCLUDED TRANSDUCER
DB-IF

TRANSDUCER HOLDING FEATURE
Foam float

Sensors

HAS BUILT-IN RECEIVER
Yes

RECEIVER
5 Hz

NMEA 2000 COMPATIBLE
Yes

GPS
Yes

GLONASS
Yes

GALILEO
Yes

SUPPORTS WAAS
Yes

4-PIN TRANSDUCER PORTS
Connections
1

GARMIN WI-FI NETWORK (LOCAL CONNECTION)
Yes

Input Voltage
9 to 18 Vdc

Dimensions
7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)

What's in the Box:

• ECHOMAP UHD2 chartplotter


• Dual Beam-IF transducer


• Tilt/swivel mount


• Portable bag


• Base/handle


• Foam float


• Power cable


• Rechargeable battery


• Battery charger


• Documentation
