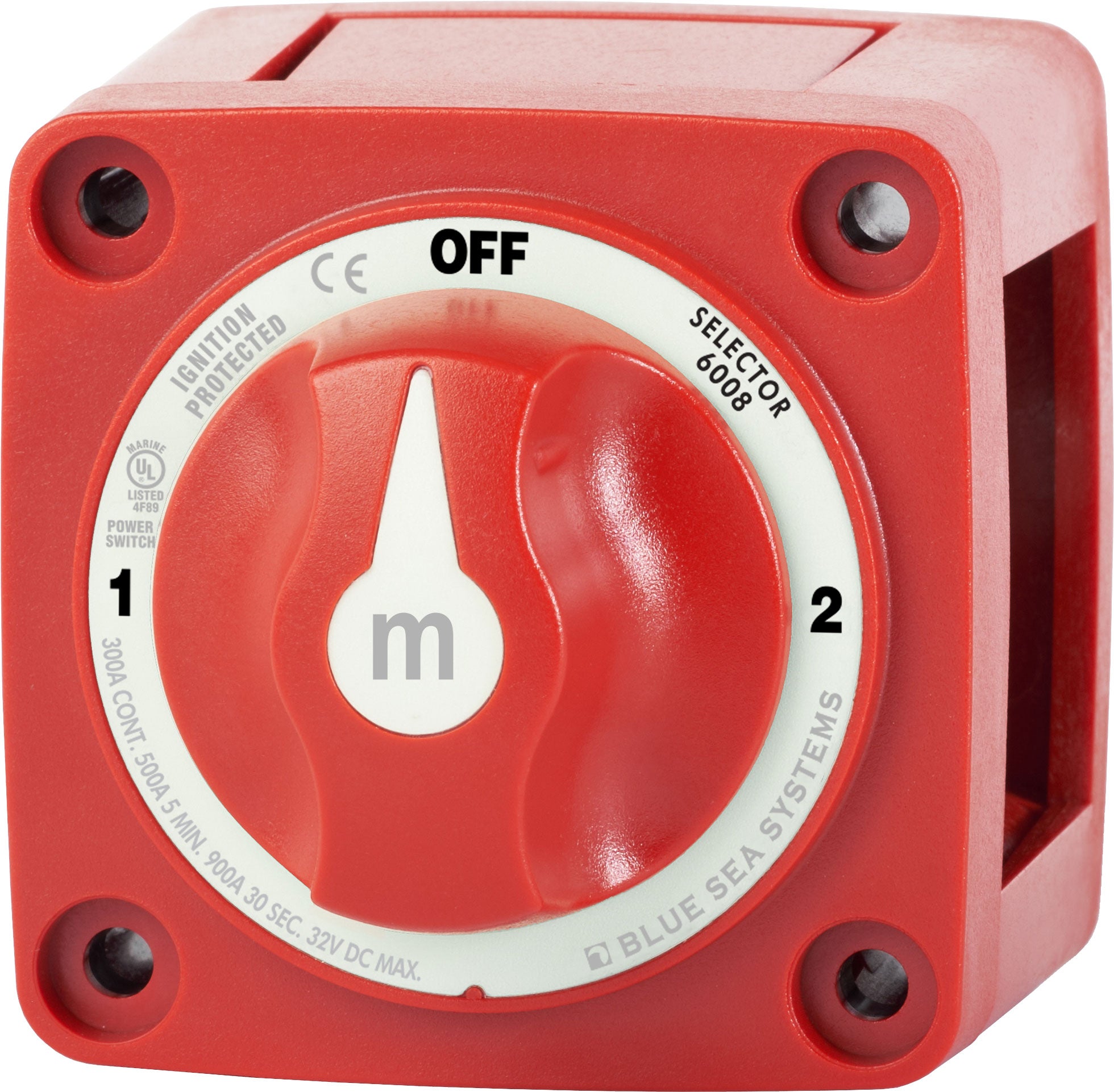

Blue Sea M-Series Battery Switch On/Off/On with Knob

Blue Sea M-Series Battery Switch On/Off/On with Knob

Blue Sea Systems m-Series Selector 3 Position Battery Switch - Red

Model: 6008-BSS

• Tin-plated copper studs for maximum conductivity and corrosion resistance


• Studs accept 3/8" (M10) ring terminals


• 7/8" (22mm) stud length accepts multiple cable terminals


• Blue Sea Systems one-piece terminal stud design never loosens over time


• Isolating cover with snap-on sections protects rear contacts


• Case design allows surface or rear panel mounting


• Waterproof — rated IP66 from water projected in powerful jets


• One-piece stainless flange nuts ensure safe and secure connections


• Breakout tabs allow wire access in any direction


• Ignition protected—safe for installation aboard gasoline powered boats

Switches a single battery to a single load group.

Specifications
Switch TypeSelector 3 PositionColorRedSwitch Positions3Battery CombineNoAlternator Field DisconnectNoMaximum Voltage32vDCStud Size3/8"Terminal Stud Torque120 in-lb (13.56 Nm)Continuous Rating300AIntermittent Rating500A (5 min)Cranking Rating 30 sec900ABattery Inputs2Cable Clearance For 4/0 AWG Cables1.12in (28.45 mm)Cable Size to Meet Ratings4/0 AWG (120mm )Mounting HolesAccept #10 ScrewStud MaterialTinned CopperStud Torque120 in-lb (13.56 Nm)Terminal Stud Size3/8" - 16 (M10)
