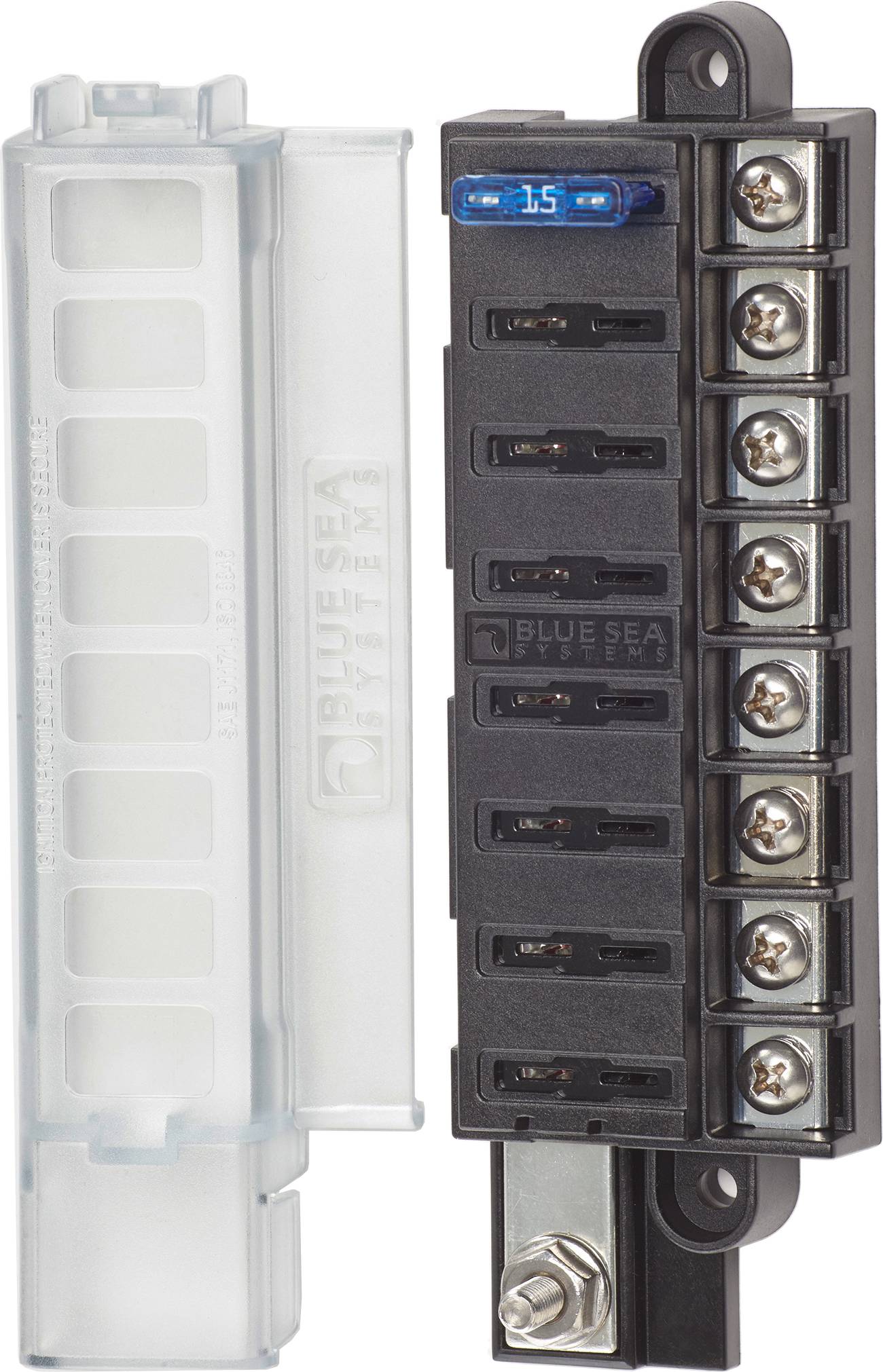

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover
Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover
Blue Sea Systems ST Blade Compact Fuse Blocks - 8 Circuits
Model: 5046-BSS- Ignition protected when cover is secure —meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 8 write-on circuit labels
- Fuses sold separately
Circuits8Maximum Amperage100A per block
30A per circuitMaximum Voltage32V DCMounting#8 Screw (M4)Terminal Stud Torque24 in-lb (2.71 Nm)Screw Terminal Torque18 in-lb (2.03 Nm)Screw Terminal Type#8-32 Scews with captive star lock washerTerminal Stud Size#10-32
