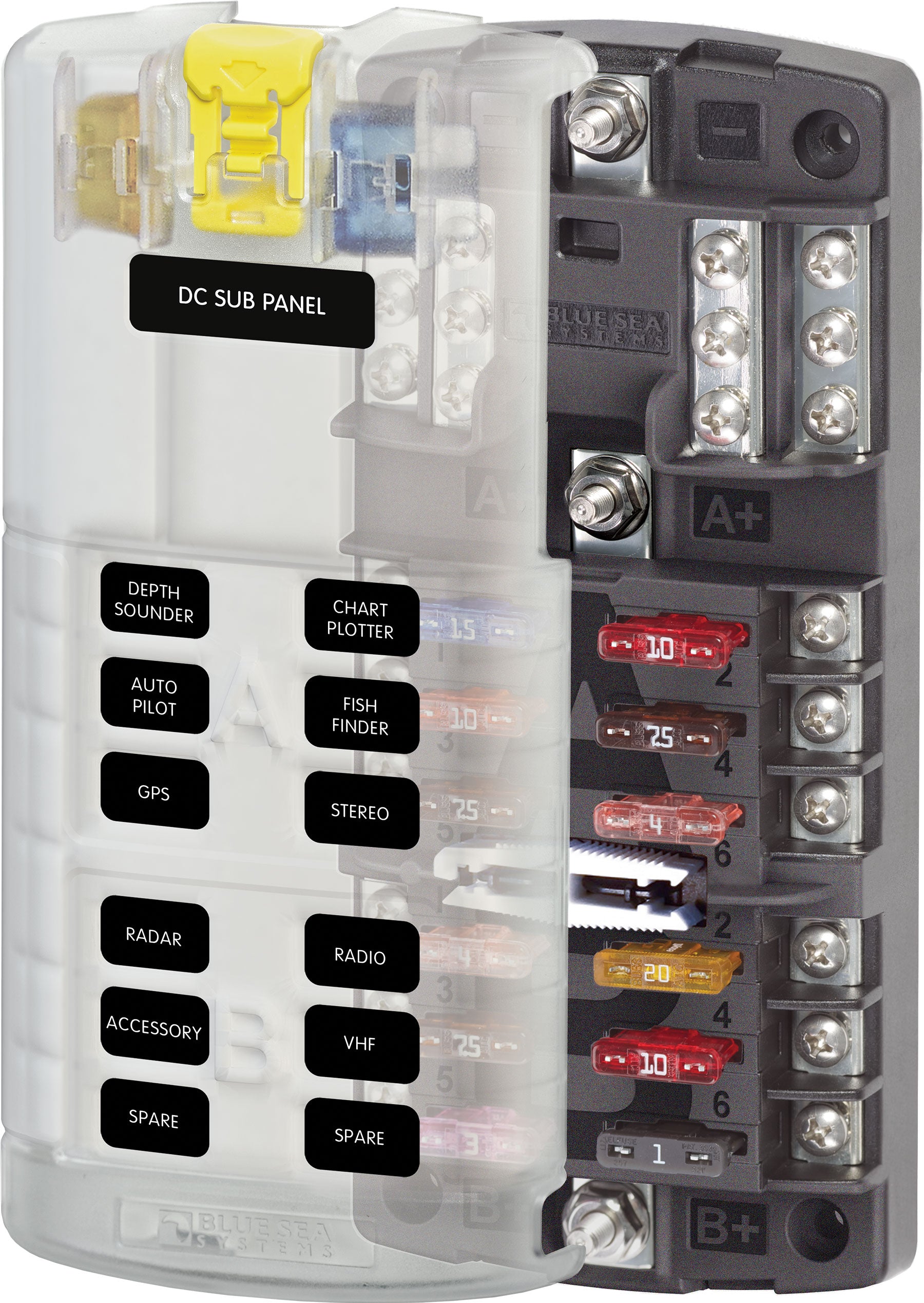

Blue Sea 5032 12-Gang 2-Group Fuse Block ST ATO/ATC Negative Bus and Cover

Blue Sea 5032 12-Gang 2-Group Fuse Block ST ATO/ATC Negative Bus and Cover

Blue Sea Systems ST Blade Split Bus Fuse Block 12 Circuits

Model: 5032

• Provides two isolated groups of six ATO®/ATC® circuits


• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits


• Screw terminals for securing wires accept ring terminals


• One-piece stainless flange nuts ensure safe and secure connections


• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements


• Easy to open, push button latch for easy access to fuses


• Tin-plated copper buses and fuse clips


• Fuses sold separately

The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.

Specifications
Circuits12Maximum Amperage100A per block
30A per circuitMaximum Voltage32V DCMounting#8 Screw (M4)Negative Bus#10-32 StudPositive Bus#10-32 StudRecommended Torque24 in-lb (2.71 N m)Screw Terminal Torque18 in-lb (2.03 Nm)Screw Terminal Type#8-32 Screws with captive star lock washerWeight0.75lb (0.25 kg)Dimensions6.472" h x 3.315" w x 1.518" d
