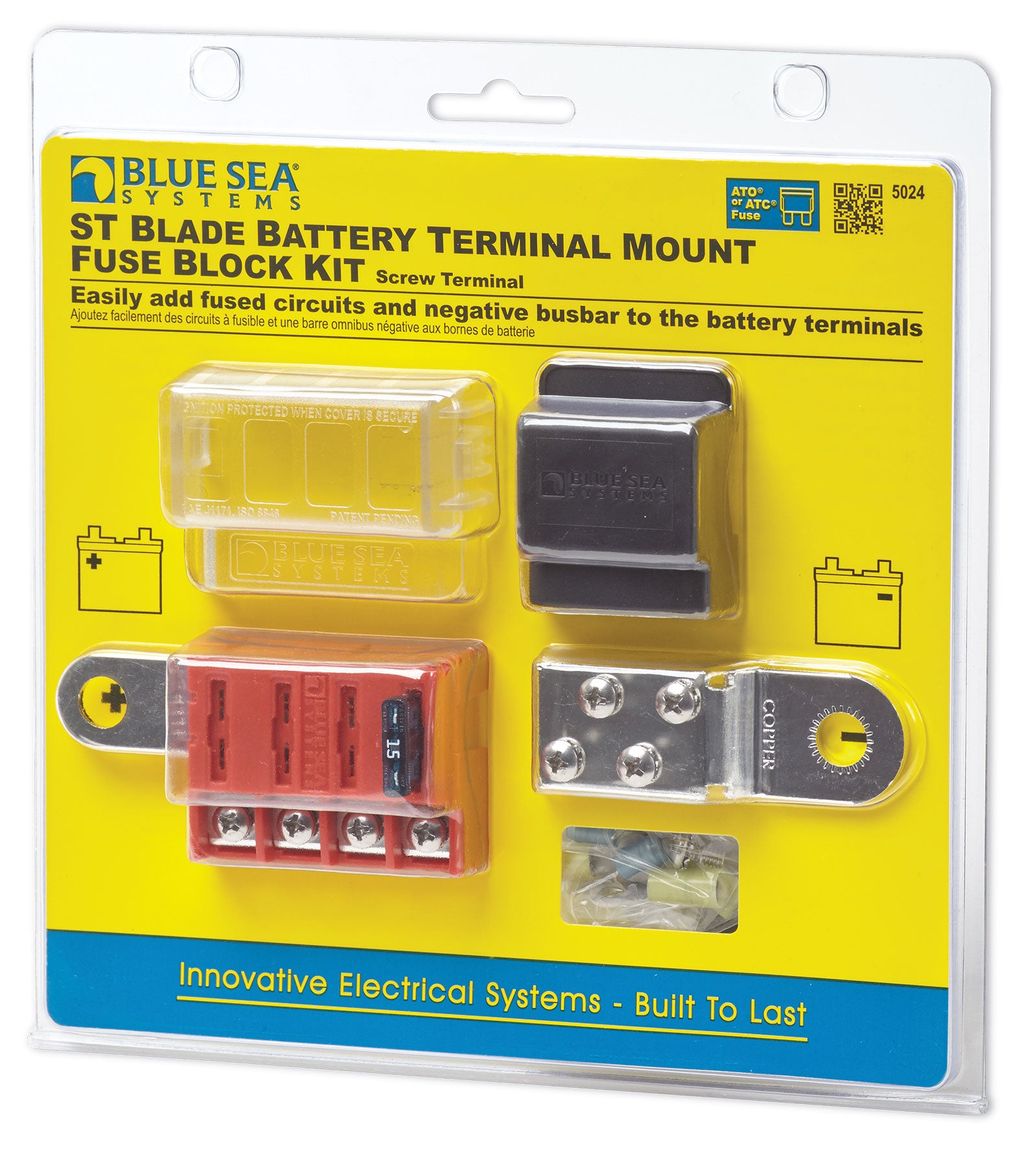

Blue Sea 5024 4-Gang Battery Terminal Fuse Block ST ATO/ATC and Cover

Blue Sea Systems

Blue Sea 5024 4-Gang Battery Terminal Fuse Block ST ATO/ATC and Cover

$54.99

Blue Sea 5024 4-Gang Battery Terminal Fuse Block ST ATO/ATC and Cover

Blue Sea Systems ST Blade Battery Terminal Mount Fuse Block Kit

Model: 5024

  • Mounts on the battery terminal stud

  • Screw terminals for securing wires

  • Nylon insulated ring terminals included for each screw terminal

  • Accepts small format circuit labels

  • Insulating cover meets ABYC/USCG insulation requirements

  • Ignition Protected—meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment

  • Includes a 4-circuit negative busbar

  • Includes write on labels

  • Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Specifications
Circuits4Maximum Amperage100A per block
30A per circuitMaximum Voltage32V DCBus MaterialTin-Plater Copper C11000Mounting Hole3/8" (M10) StudScrew Terminal Torque18 in-lb (2.03 Nm)Screw Terminal Type#8-32Weight0.50lb (0.23 kg)
