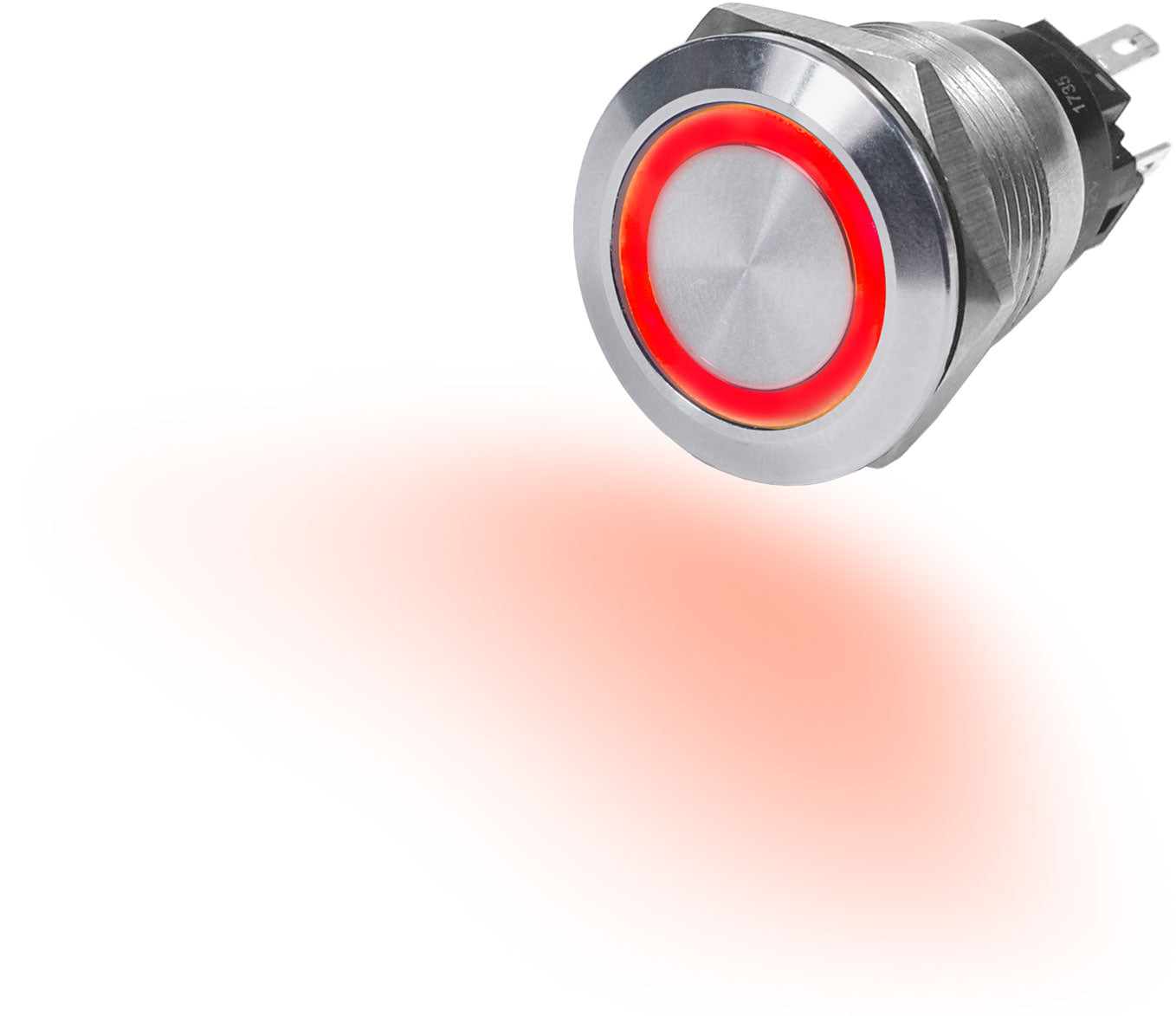

Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On
Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On
Blue Sea 10A Push Button LED Ring Switch Off-(On) Red - Momentary On
Model: 4163-BSS- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
ActionOFF-(ON)- Momentary OneAmperage10A @ 12V DC Resistive
3A @ 12V InductiveNominal Voltage12V DCMaximum LED Operating Current20mAMinimum Operating Temperature-10° CMaximum Operating Temperature70° CMinimum Storage Temperature-55° CMaximum Storage Temperature85° CIlluminationIndependent — Separate contacts for LED powerMax Panel Thickness0.31in (7.87 mm)Mounting Hole¾" (19mm)Switching Cycles40,000Termination5 — 0.110inch Quick Connect terminals
Couldn't load pickup availability
Pickup available at BassBoatWired
Usually ready in 2-4 daysPairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On
