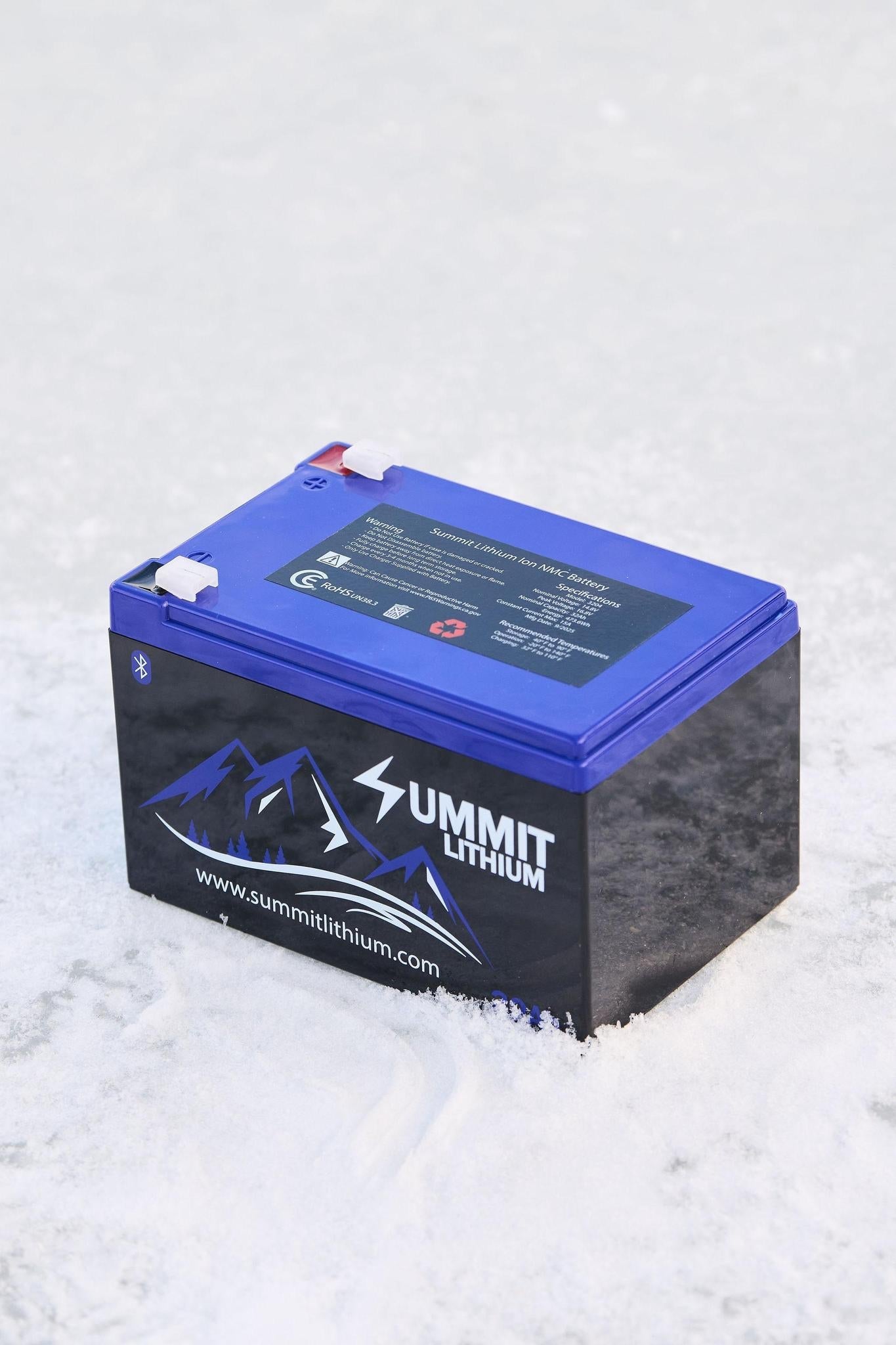

32AH NMC Lithium ION Battery With Charger and Bluetooth

Overview

The Summit Lithium 14.8 Volt 32Ah NMC Battery is the sweet spot for most forward-facing sonar setups. It offers excellent runtime, reliable cold-weather performance, and the power overhead needed for 9–10" screens without stressing the battery. The 32Ah is the workhorse of the lineup — strong, stable, and built for anglers who fish long hours but want a to save weight over the 52ah battery.

Industry leading Battery Management Platform
     Core Features:

• Real-Time Performance Monitoring
• State of Charge (SOC) accuracy to 99.5%
• Individual cell voltage tracking (±0.01V)

     Multi-zone temperature profiling

• Advanced Protection Systems
• Instantaneous over/under voltage response
• Microsecond short-circuit interruption
• Multi-point thermal management

     Active Cell Balancing

• Continuous voltage synchronization
• Prevention of cell degradation during cycles
• Enhanced energy preservation

Key Features:

• All-day power for mid-size sonar bundles
• High-stability 14.8V output for crisp FFS imaging
• Excellent cold-weather performance
• Bluetooth App support — check charge, health, cycles
• Lightweight at 4.92 lbs
• NMC chemistry with high energy density
• Fast 6A charging included
• SAE harness in the box
• Integrated BMS for safety and reliability

Ideal For:

• Fits best inside the Summit Shuttle but is compatible with most popular brands. Summit Fishing, HD Innovations, ArcLab, Fin Gear, Fish Armor, Ice Master Fishing, TKI, BassKhang, Vexilar, etc.
• 9–10" screens
• All portable shuttles
• All-day ice fishing
• Tournament scouting

Technical Specs:

• Model: 3204
• Voltage: 14.8V nominal
• Peak Voltage: 16.8V
• Capacity: 32Ah
• Max Continuous Discharge: 15A
• Weight: 4.92 lbs
• Chemistry: Lithium NMC
• Bluetooth App: Yes
• Certification: UN38.3
• Dimensions: 5 7/8" x 3 7/8" x 3 5/8"
• Weight: 4.8 lbs

What’s Included:

• 32Ah Summit Lithium Battery
• 6A Fast Charger
• SAE Quick-Connect Harness

Safety Notes:

• Charge only with included charger
• Do not charge below 32°F
• Keep away from water or moisture
• Do not expose above 158°F
• Do not open, modify, or short-circuit
• Do not wire in series
• Do not use for permanent on-board/boat installs

WARNING: Lithium-ion batteries and/or products that contain lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
