18" - 36" GEN 1 Carbon FFS Pole SYSTEM (Non X-Over)

DOES NOT INCLUDE BOAT CONNECTION COMPONENTS

UMS SYSTEM  RECOMMENDED

NOT COMPATIBLE WITH X-OVER LENGTH EXTENSION

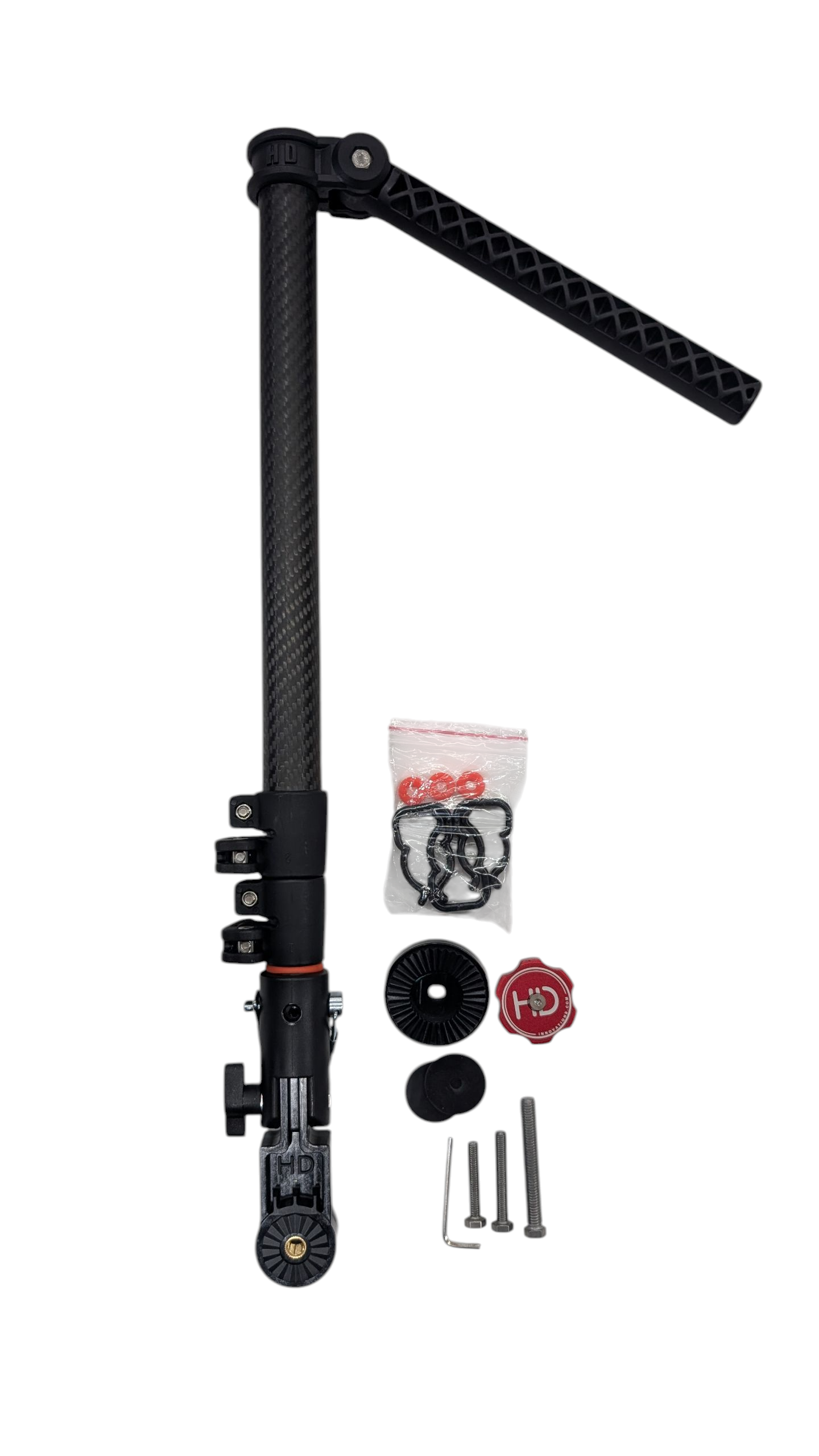

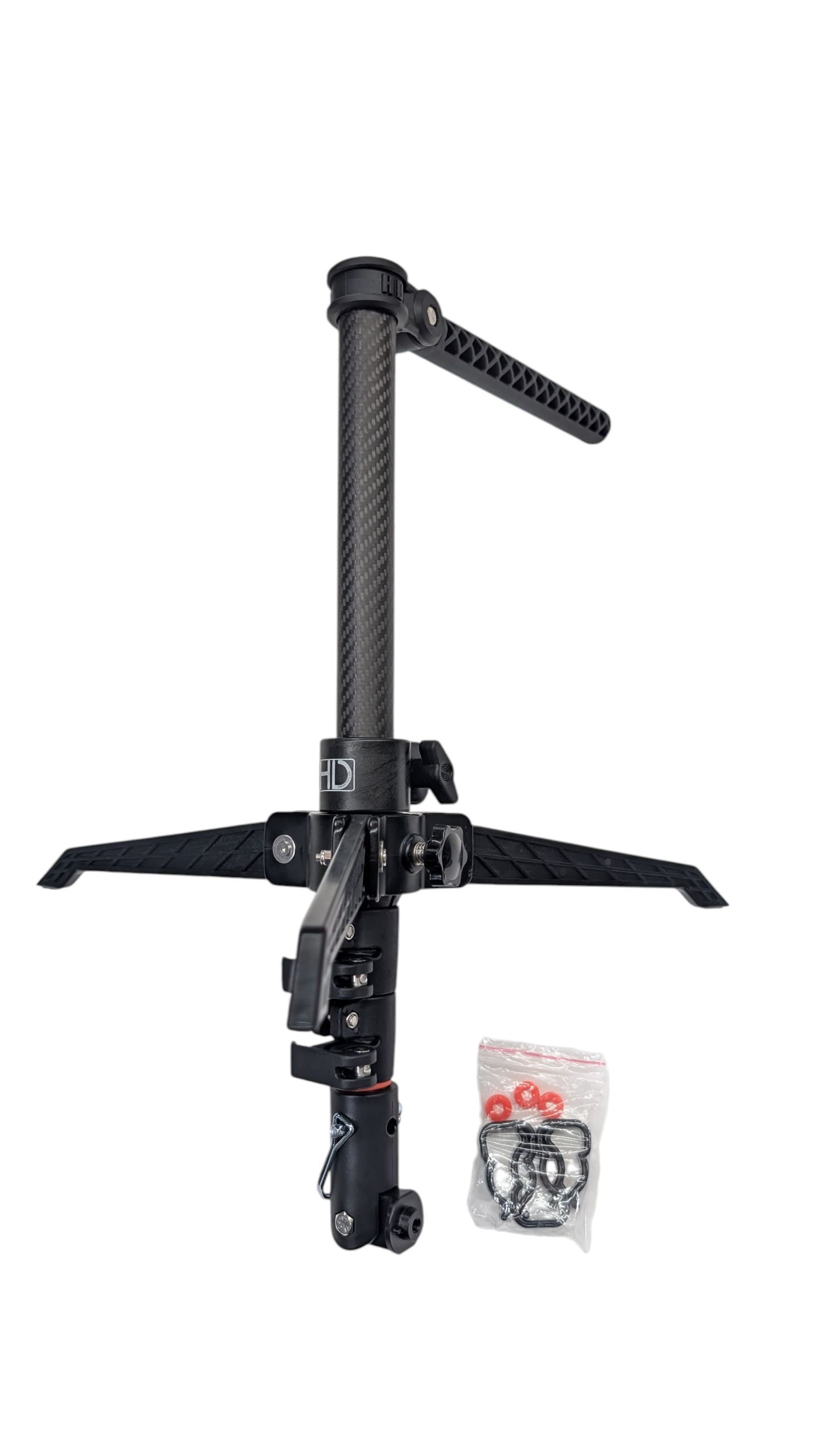

Included

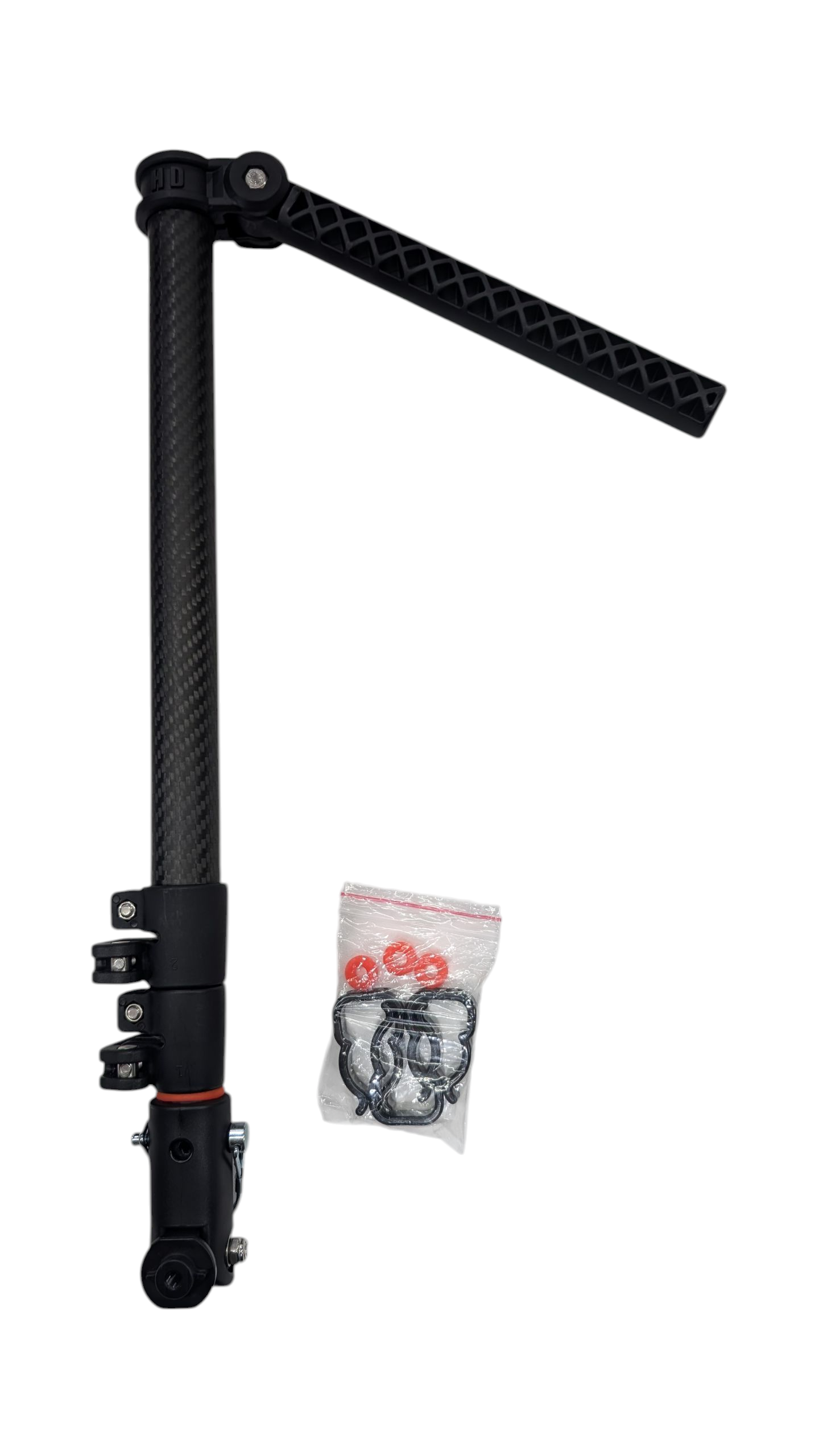

• 18" - 36" Carbon Fiber Telescoping Pole
• HD Pole Handle
• HD Multi mount Transducer mount WITH Perspective mode and 0deg lock

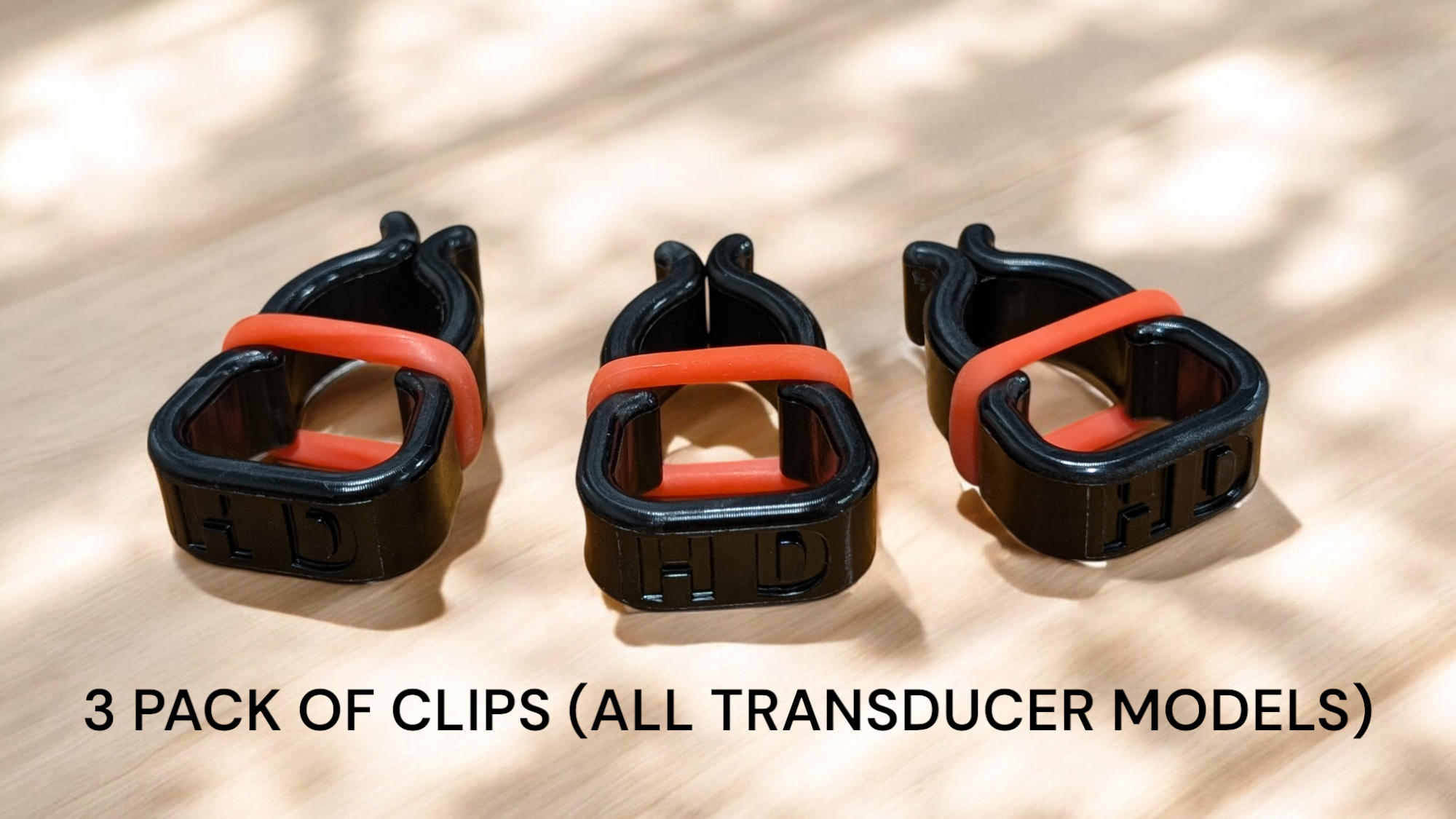

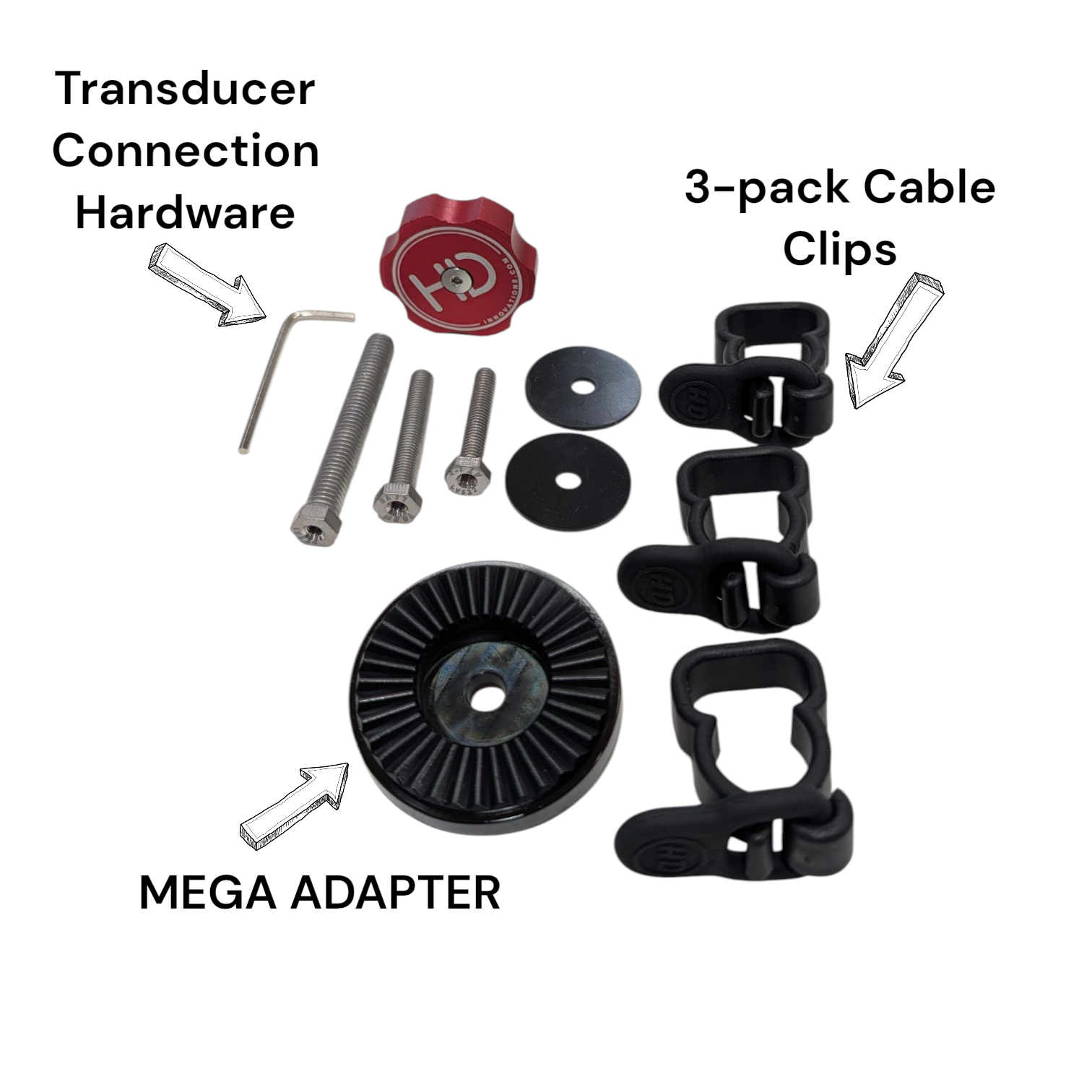

• 3 pack cable clips.
• Aluminum/Stainless Steel HD Interchange Knob set (NOT INCLUDED WITH EAGLE EYE OPTION)

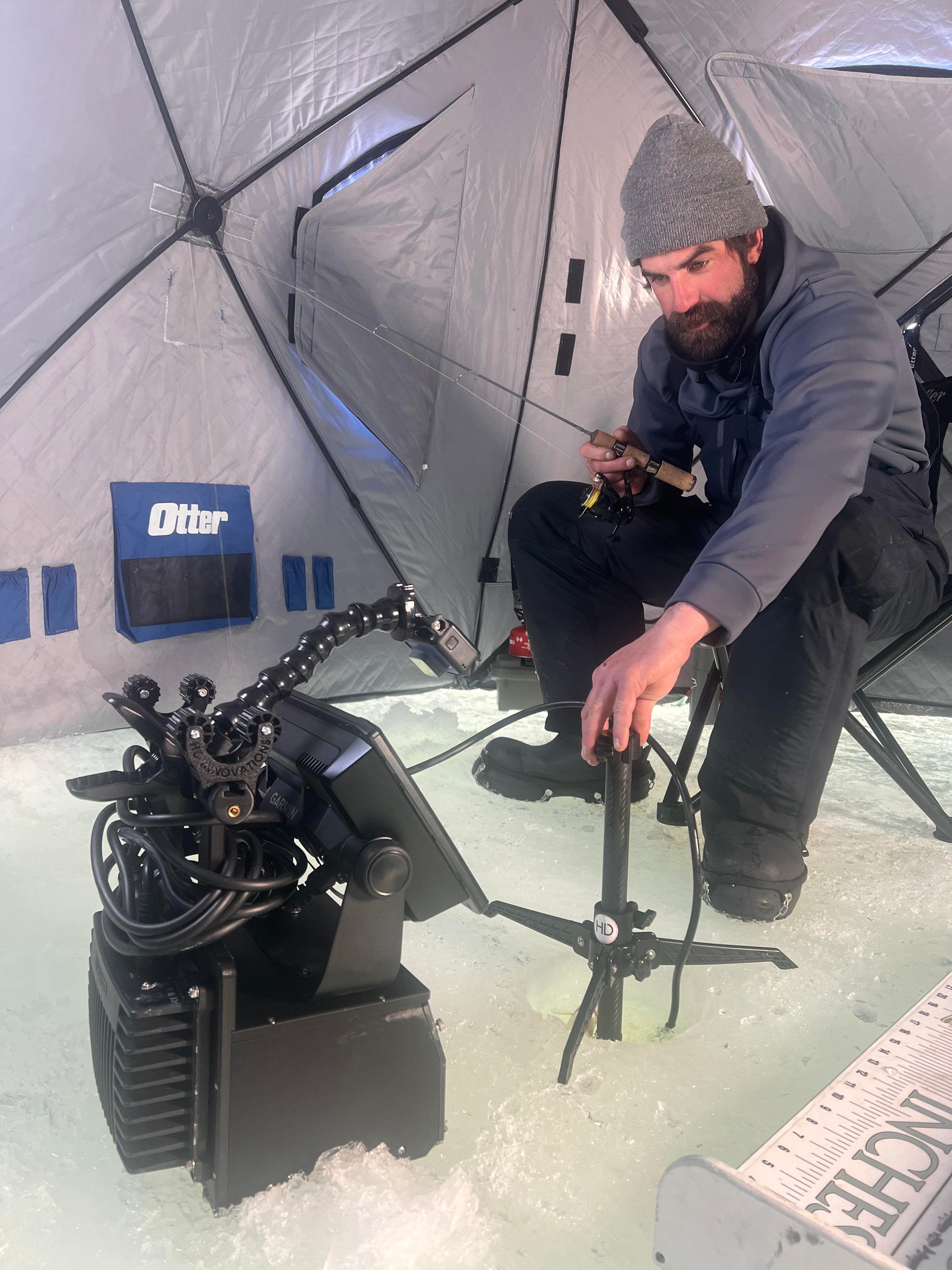

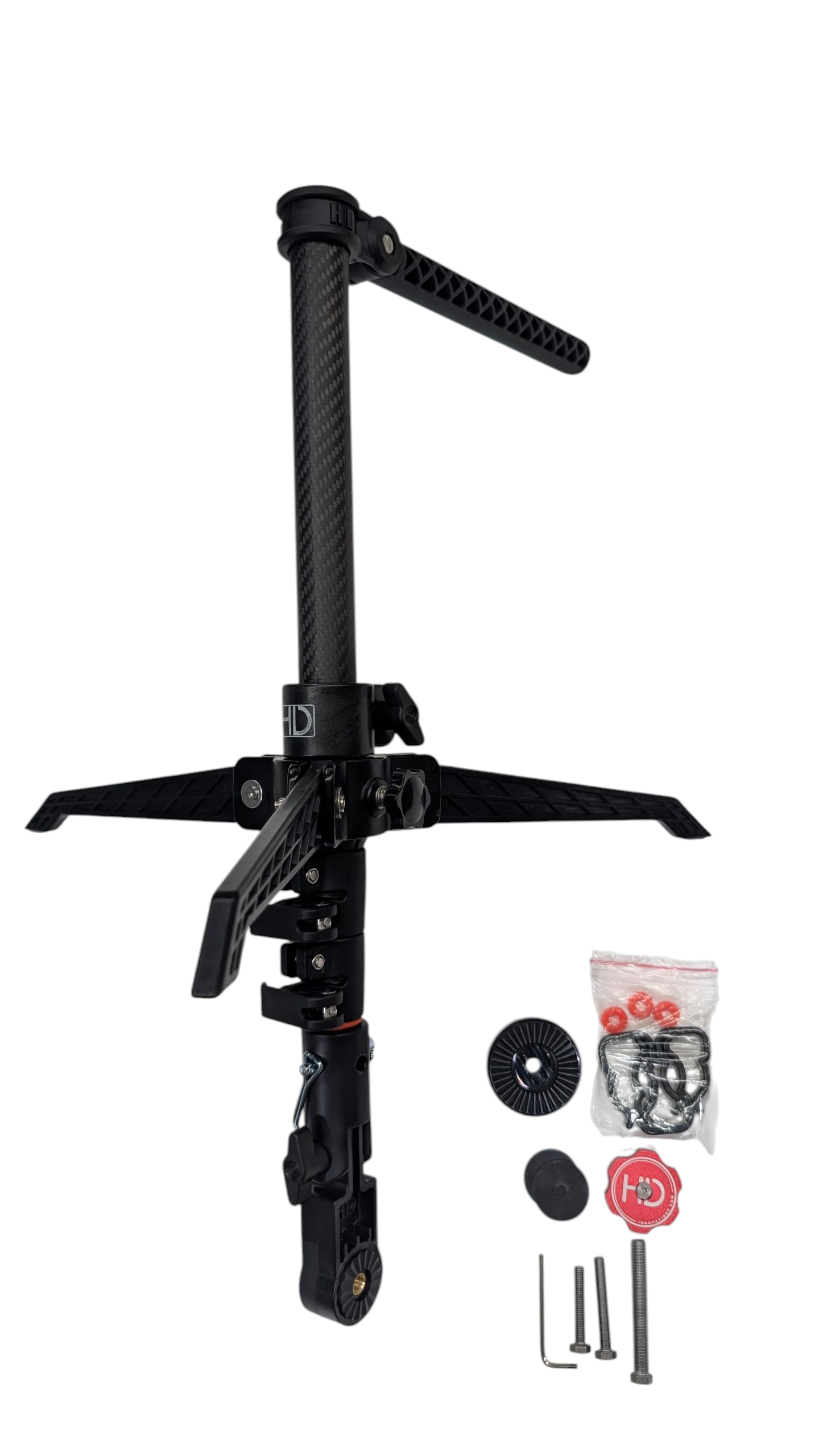

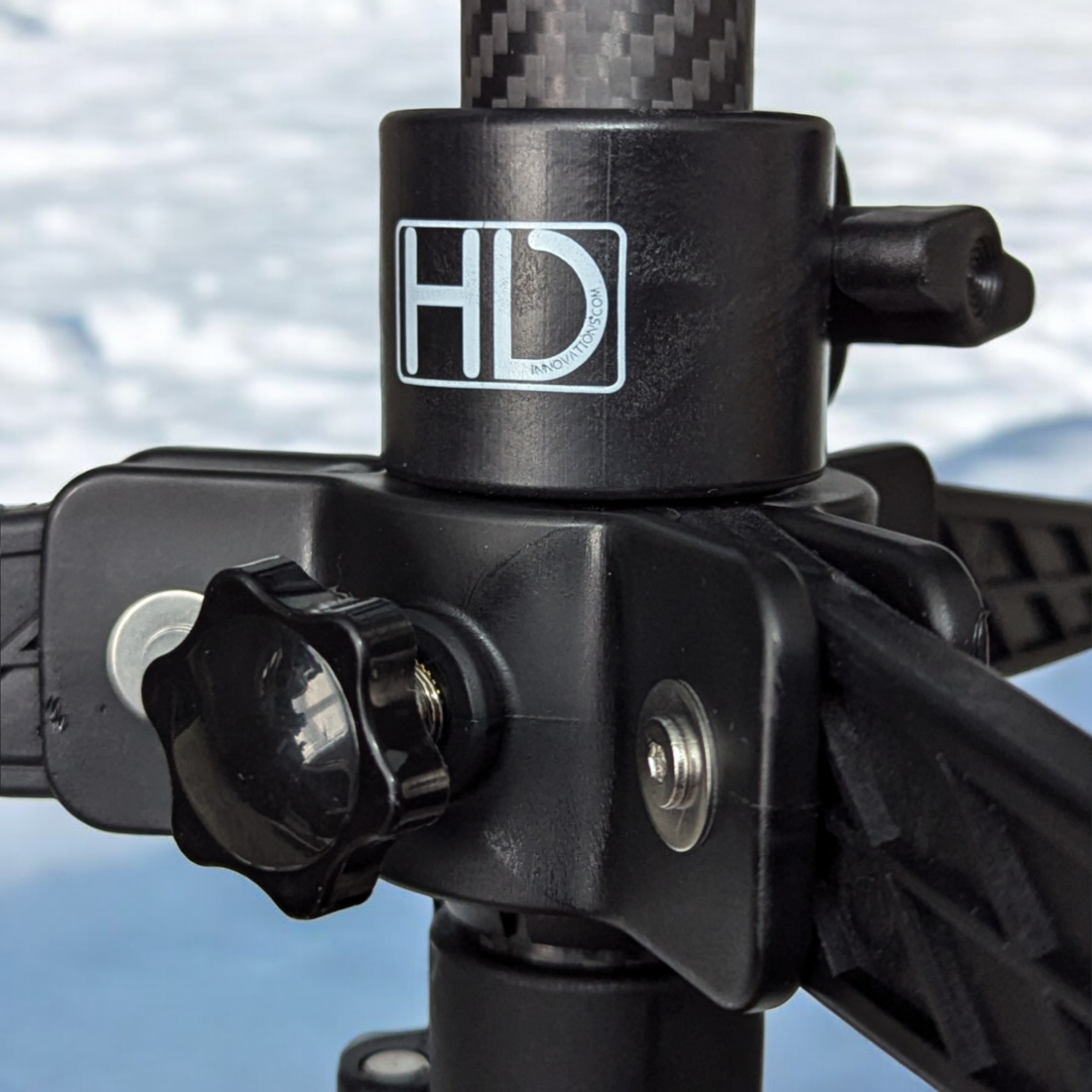

• HD Ice Tripod (When Selected Above)

FULLY COMPATIBLE WITH HD UMS SYSTEM

Pole Length Guide

Overall usable length is determined by the placement of the pole holder on the upper pole section.

Pole Diameters

• Upper 1.125"
• Mid 1"
• Lower .875"

Pole min and max lengths with transducer mount attached (Handle to transducer bolt)

• 18-36 = 22"min - 40"max

HD Innovations prioritizes user experience in their designs! The HD Carbon FFS pole system is crafted to withstand the elements on both ice and open water while exceeding expectations. Featuring a proprietary 3k carbon fiber telescoping pole with channels for precise handle and transducer alignment. This system includes nylon cam clips with stainless springs for length adjustment, even in freezing conditions. Weighing less than 1.75lbs, it stands as the lightest pole system available.

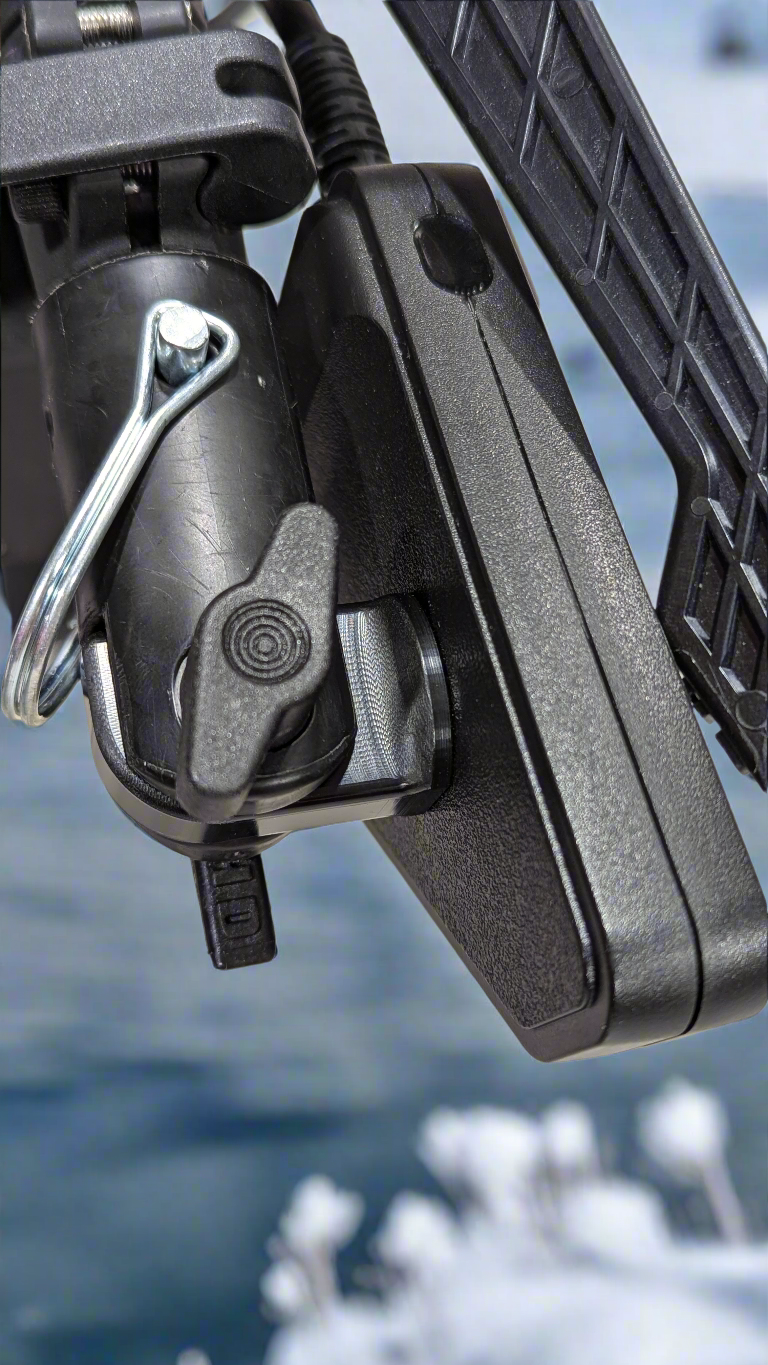

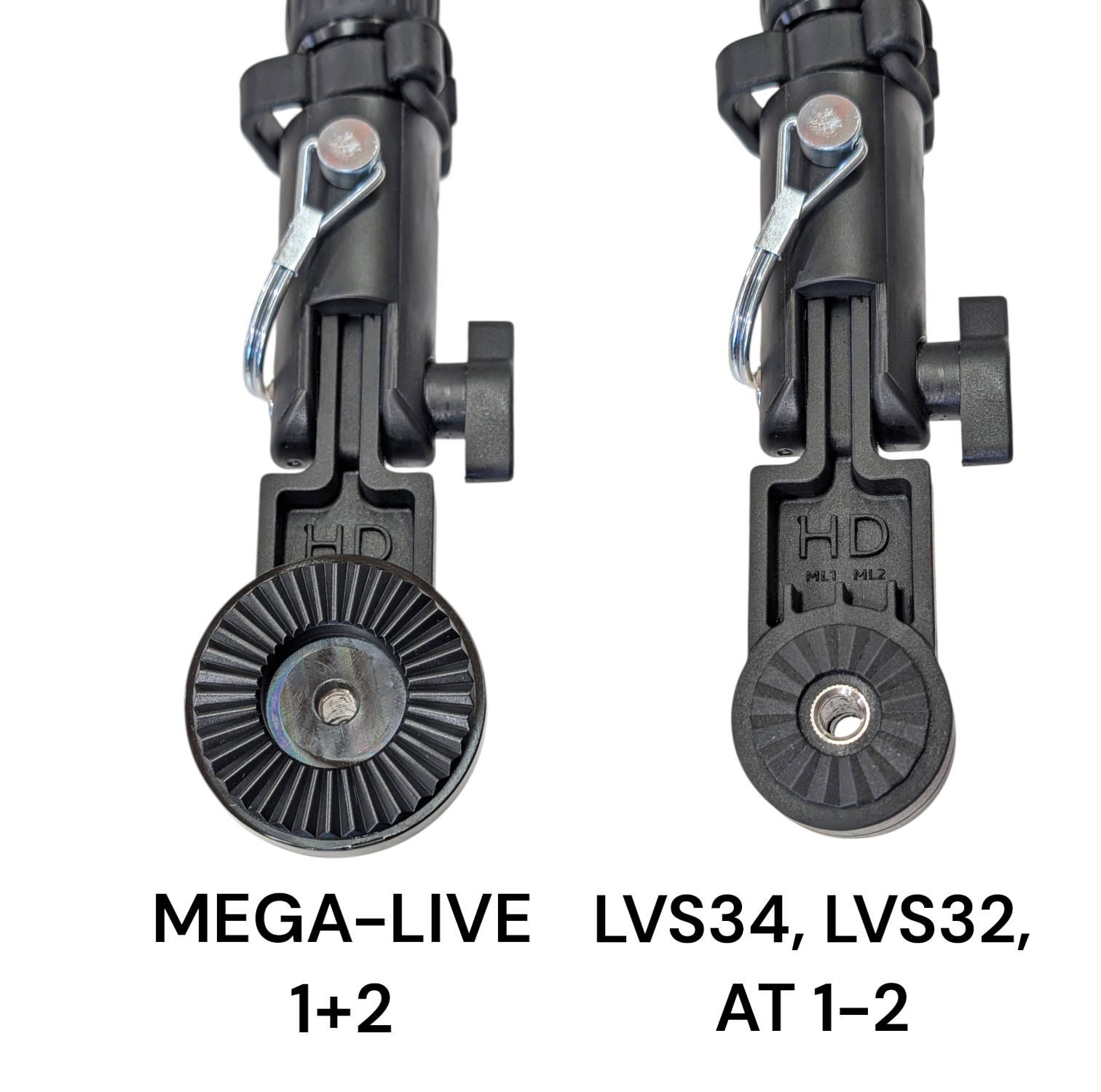

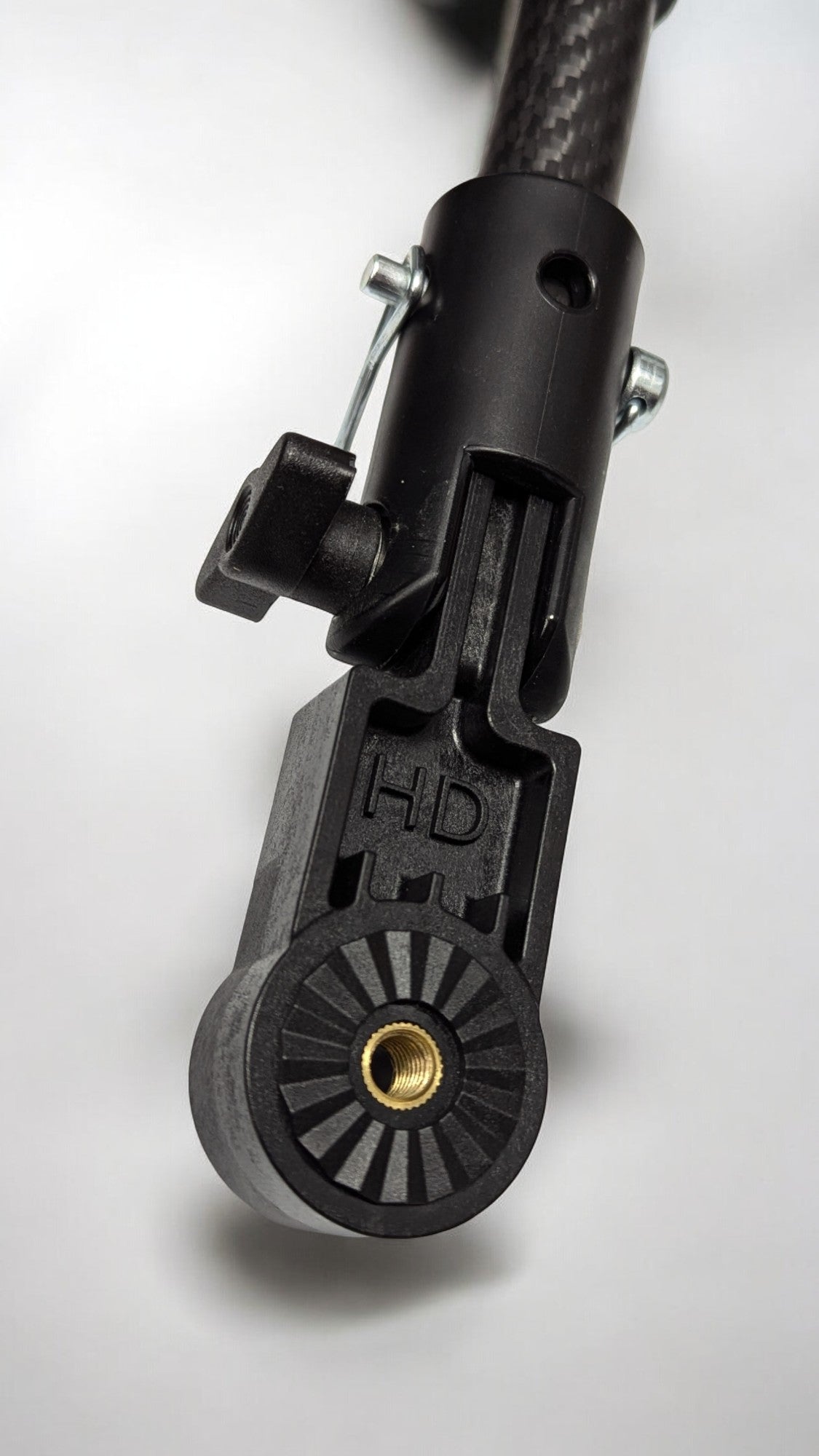

The groundbreaking HD MULTI-MOUNT transducer mount introduces the innovative Patent Pending "Slide and Lock" design for unparalleled functionality. This mount guarantees a secure locking 90-degree transducer angle for optimal imaging in the most demanding environments. With a simple slide down and tip up , the transducer can be instantly deployed into perspective mode. The versatile lower design allows this mount to accommodate LVS32, LVS34, LVS62, AT1 & 2, and Mega-Live 1&2 with the provided adapter disk. Custom CNC knobs replace factory shoulder bolts for tool-free transducer mode adjustment.

Compatible with HDI Shuttle Pole holders.

MEGA LIVE ASSEMBLY

To install MegaLive you will use the HD transducer mount, HD black circle adapter disk, HD thumbscrew labeled MEGALIVE, and your bare transducer. Do not use the flip bracket.

1) Lubricate the threads of the aluminum HD "Megalive" thumbscrew (You can use wax, chapstick, anti seize, ect).

2) Insert the HD thumbscrew through the back of the HD Transducer mount.

3) Install the black circle adapter disk over the threads with the tooth inserting into the labeled hole for Mega 1(Left Slot) or Mega 2(Right Slot).

4) Now install your MegaLive transducer directly into the mount by threading the thumbscrew into the transducer.

*To change transducer orientation, simply loosen the thumbscrew and adjust the angle, then snug back up.

*DO NOT OVER TIGHTEN

*THREAD LUBRICATION IS CRUCIAL

*Use with non roller style pole holders may void warranty.

*Pole holders not included. (Pole holders included with HDI Shuttle)

*Transducers not included.

*Please note that this product is offered through Direct-to-Consumer (DTC) channels and does not come with retail packaging or the universal transducer mount hardware. This approach helps us keep costs low, allowing us to pass those savings directly to you. We focus on delivering the product straight to your door, ensuring a hassle-free experience while maintaining the same high-quality standards you expect from us.
